Product Details:
Payment & Shipping Terms:
|
| Model: | ICC-300 | Collect Time: | About 1S |
|---|---|---|---|
| Power Supply: | DC 24V+/-5% | Material: | Iron And ABS |
| Dimension: | 240*98*165mm | Weight: | 0.7kg |

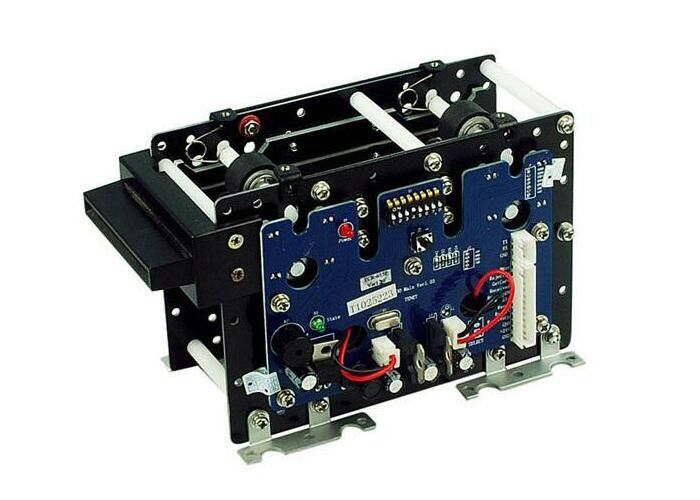

24v Ticket Collection Machines Plastic Card Reciver Easy To Use
Description:
Automatic card collector, smart card collector
Card collector for parking and high-way toll station
Auto card collector DC24V RFID card reader/writer
New style hot sale automatic kiosk rfid ic card collector
Automatic RFID Smart Card collector for TCP/IP Parking ICC-300
TTL and RS323 interface motor card collector card collector parking system
Parking Access Control Automatic Smart Card Collector for parking lot access ICC-300
ICC-300 could be widely used in Card Park, theatre, and other entertainment places in which use
member cards.
ICC-300 is multifunctional card issuing/collecting machine with barcode scanner or RFID card read/write
functions. The machine could have barcode scanning or RFID card (Including Type A & B) read/write
function.
The machine adopts high-intensity and anti-corrosion material. And provide customized service such
as SIMCard board for RFID read/write option, preserve control interface for error card bin sensor,
multi-unit communication option.
Function:
1) When jam occurs, can choose overtime recycling and overtime not recycling.
2) When jams, can choose withdraw the card forcibly of reject the card.
3) Can choose overtime withdrawal card or overtime not withdrawal card.
4) Can choose time of pushing overtime card
5) Function of preventing misuse, when the first card is at the completion of action, the second
card is not acceptable;
6) Can provide PC with enable and whether there are barrier signals;
7) Can receive the order of valid, invalid from PC
8) Sound and light alarm when errors.
Application:
Specifications:
|
Model |
ICC-300 |
|
Features |
Plastic frame module, IC/RFID card read/write |
|
Dispense/capture/accept card |
|
|
Removable stacker options |
|
|
Very compact & robust |
|
|
Application |
Card parking system |
|
Card issuing machine |
|
|
Card vending machine |
|
|
Motor |
2 pcs |
|
Card standard |
IC Card: ISO7816 RFID Card: ISO14443 Type A/B |
|
Card Thickness |
0.4-1.0mm |
|
Stacker Capability |
1000pcs(0.76mm standard card) |
|
Communication |
RS-232 /USB |
|
Power supply |
DC 24V+/-5% |
|
Temperature/Humidity |
Operation: 0-50°C/0-90%RH(Non-condensing) Storage: -10-75°C/0-90%RH(Non-condensing) |
|
Dimension |
240x98x165mm |
|
Weight |
0.7kg |
