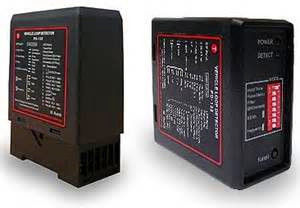

Magnetic Field Induction Loop Dectector For Auto Gate Control System

: Large Image : Magnetic Field Induction Loop Dectector For Auto Gate Control System

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	ISO 9001:2008,CE,Rohs
Model Number:	ILD-110-12V

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	USD0~30 per pcs
Packaging Details:	78x40x108 mm (L x W x H)
Delivery Time:	2~3 working days
Payment Terms:	T/T
Supply Ability:	10000pcs per month

Detailed Product Description

Material:	ABS	Color:	Black
Reaction Time:	100ms	Frequency Range::	20 KHz To 170 KHz
Dimension:	78x40x108 Mm	Gross Weight:	340g
Sensitivity:	4 Grade	Power Consumption:	5W

Magnetic Field Induction Loop Dectector For Auto Gate Control System

Description:

PD132 should be installed in a convenient weatherproof location as close to the loop as possible. Installation location must choose to stay away from the heat source; it around other devices must maintain a distance of at least 10mm (must not installation close with boxes wall). A correct loop configuration and detector installation will ensure a successful inductive loop detection system. Loop of several important parameters include: loop figure, size, turns, install methods.

Operation and Indication

While the detector is tuning, the green Channel LED and red Power LED will be turn on. It remain about 2 seconds, then the green LED turn off. If a loop fault exists the Channel LED will come on and flash indicating a fault. If the fault is self-healing the detector will continue to operate. The green channel LED will also glow whenever a vehicle is detected passing over the inductive loop. The red Power LED at the top of the unit will remain on to indicate that the unit is powered.

Application:

Gate Opener

Traffic light

Vehicle monitor

Highway toll system

Parking lots toll system

Specifications:

Operating voltage:	12V DC
Power Consumption:	<5W
Output :	Relay Output
Frequency range:	20 KHz to 170 KHz (4 grades adjustable)
Reaction time:	10ms
Signal holding time:	Unlimited / limited 10 minutes when loop is permanently covered
Sensitivity:	7 grades
Loop inductance:	Ideal 100μH to 300μH (include connecting wiring)
	Max 50μH to 1000μH (include connecting wiring)
Loop Wiring:	Max. 100m, twisted at least 20 times per meter, total resistance <10 Ohm
Auto correcting time:	1s to 2s
Operating temp:	-30℃ to +70℃
Storage temp:	- 40℃ to + 85℃
Relative humidity:	≤ 95%
Dimensions:	78×40×108 mm (L×W×H) (include socket )
Net Weight:	340g(include socket)
Dimensions	78x40x108 mm
