| Material: | ABS | Weight: | 300g |
|---|---|---|---|
| Dimension: | 78x40x108 Mm | Frequency Range: | 20 KHz To 170 KHz |
| Sensitivity: | 3 Grade | Reaction Time: | 100ms |
| Installation: | DIN Rail | Connection: | 11-Pin Socket |

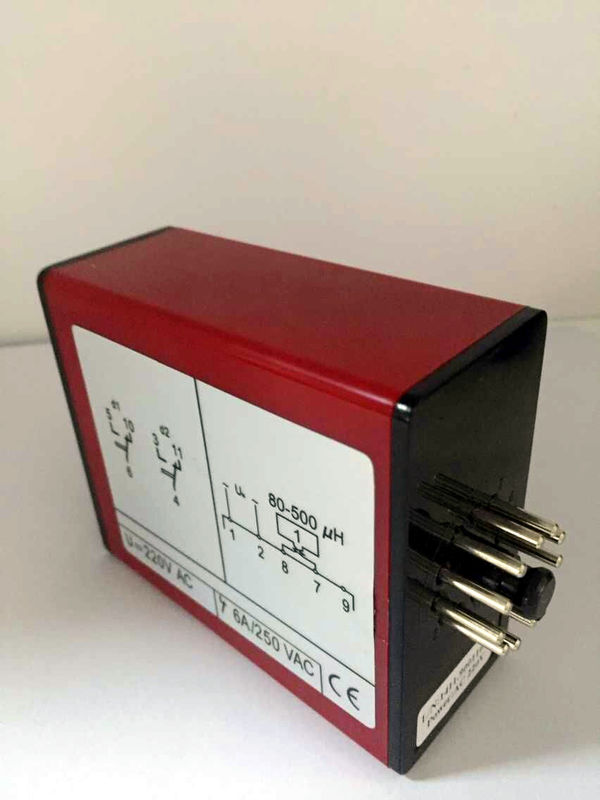

Double Inductive Loop Vehicle Detector / Inductive Loop Sensor For Barrier Gate
Product Description:
IVD-110-220V Double Loop Detector are used for indicating the presence or passage of vehicles. A system consists of an inductive loop and a detector module. Applications include traffic signal control, access control in car parks gate operator and vehicle counting.
Applications:
1. traffic light
2. vehicle monitor
3. Highway toll system
4. Parking lots toll system
Specifications:
The Product has two-way output relays
One is unlimited output when loop is temporarily covered, while the other is multi-mode that can be set by users
Operation Voltage: AC 220V±10%
Power consumption: <5W
Output: relay output
Frequency range: 20kHz to 170kHz (4 grades adjustable)
Reaction time: 100ms
Sensitivity adjusting: 3 grades
Loop inductance:
Ideal: 100uH to 300uH (include connecting wiring)
Maximum: 50uH to 1000uH (include connecting wiring)
Loon connection wiring: recommend down-lead not more than 100 meters, twist 20 times at least per meter for the loop, total resistance ≤10 Ohm
Connection method: 11-pin socket
Shell: PC and ABS engineering plastics
Installation: DIN rail
Operation temperature: -30 to 70 Degree
Storage temperature: -40 to 85 Degree
Relative humidity: ≤95% RH
