| Material: | ABS | Color: | Blue |
|---|---|---|---|
| Reaction Time: | 10ms | Sensitivity: | 4 Levels |
| Dimension: | 79×22.5×90mm | Gross Weight: | 250g |
| Operating Temperature: | -20°C To +65°C | Storage Temperature: | -40°C To +85°C |

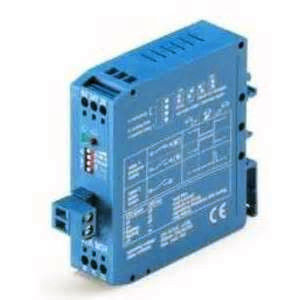

Portable Electronic Single Channel Inductive Loop Vehicle Detector
This innovative compact detector is specifically intended for controlling motorised doors and gates. Provides selectable Fail Safe / Fail secure operation and has both presence and pulse relay outputs
The GD100 operates from a 24V AC/DC supply and is designed for DIN Rail mounting.
IVD-M1H is a single channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.
MAIN FEATURES :
1) When the DIP switch is on position or changing the presence output time, Self-detection
would be done ;
2) ABS align to the pillar which can combine with each other compactly ;
3) Presence output time can be adjustable ;
4) Work mode can be set by the DIP switch ;
5) Pulse output or permanent output can be adjustable .
TECHNICAL DATA :
1) Power Supply : AC/DC 12~24V
2) Power Consumption : 3W maximum
3) Output Relay : 120V/3A AC
4) Work Temperature : -20oC ~ +70oC
5) Loop Inductance Range : 50μH ~ 800μH ( ideal 100μH ~ 300μH )
6) Work Frequency : 20kHz ~ 130kHz
7) Sensitivity : 4 levels adjustable
8) Self-calibrating : 1s to 2s
9) Dimension : 79×22.5×90mm ( L×W×H )
10) Reaction time: 10ms
