Product Details:
Payment & Shipping Terms:
|
| Model: | ICC-200 | Collect Time: | About 1S |
|---|---|---|---|
| Power Supply: | DC 24V+/-5% | Material: | Iron |
| Dimension: | 240*98*165mm | Weight: | 0.73kg |
Self Service Train Ticket Collection Machines At Railway Stations
Description:

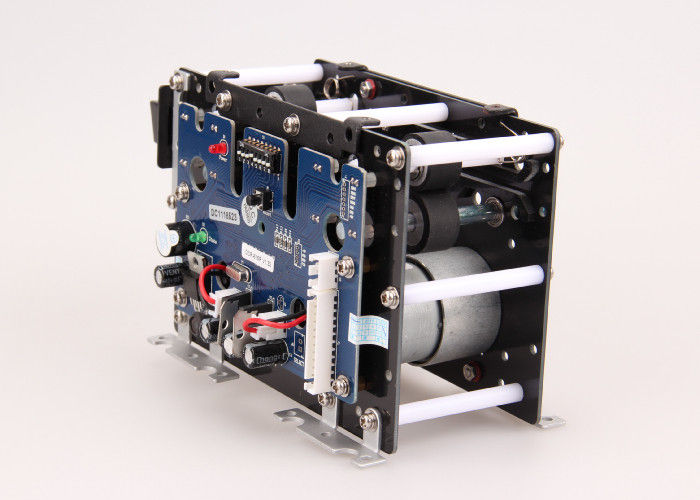

Automatic RFID Double Motor Smart Card collector for TCP/IP Parking ICC-200
Automatic card collector, smart card collector
Parking Access Control Automatic Smart Card Collector for parking lot access ICC-200
TTL and RS323 interface motor card collector card collector parking system
Card collector for parking and high-way toll station
Auto card collector DC24V RFID card reader/writer
New style hot sale automatic kiosk rfid ic card collector
Application:
Product Features:
Specifications:
|
Model |
ICC-200 |
|
Features |
Plastic frame module, IC/RFID card read/write |
|
Dispense/capture/accept card |
|
|
Removable stacker options |
|
|
Very compact & robust |
|
|
Application |
Card parking system |
|
Card issuing machine |
|
|
Card vending machine |
|
|
Motor |
2 units |
|
Card standard |
IC Card: ISO7816 RFID Card: ISO14443 Type A/B |
|
Card Thickness |
0.4-1.0mm |
|
Stacker Capability |
1000pcs(0.76mm standard card) |
|
Communication |
RS-232 /USB |
|
Power supply |
DC 24V+/-5% |
|
Temperature/Humidity |
Operation: 0-50°C/0-90%RH(Non-condensing) Storage: -10-75°C/0-90%RH(Non-condensing) |
|
Dimension |
240x98x165mm |
|
Weight |
0.73kg |
