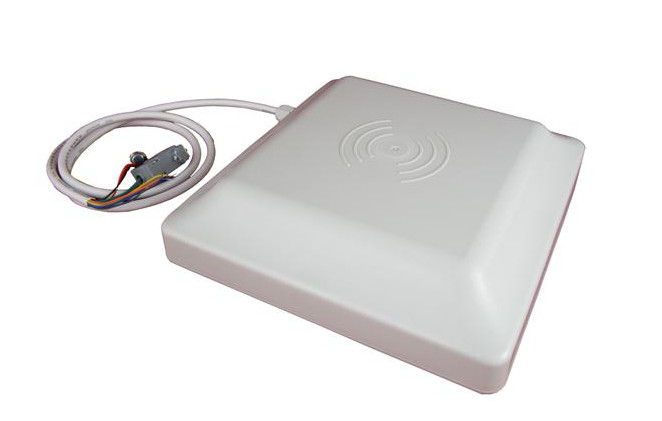

Active Read Usb Rfid UHF Card Reader With RS232 / RS485 / Wiegand Interface

: Large Image : Active Read Usb Rfid UHF Card Reader With RS232 / RS485 / Wiegand Interface

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	ISO 9001:2008,CE,Rohs
Model Number:	ICR-350

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	1pc/carton standard package
Delivery Time:	1 days after get payment if less 100 unit
Payment Terms:	T/T
Supply Ability:	1,0000 set/month

Detailed Product Description

Active Read Usb Rfid UHF Card Reader With RS232 / RS485 / Wiegand Interface

Quick Detail:

Interface:RS232, RS485, Wiegand, (RJ45, WIFI optional)
Frequency:865-868MHz, 902-928MHz
Tag Protocol:EPC Gen2(ISO18000-6C), ISO18000-6B
Read Range:3~5m
Power supply:DC 9V+/-5%
Dimension:235*235*57mm

Specification:

Model	ICR-350 card reader
Protocol	ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)
Work Frequency	Standard ISM 865-868MHz, 902~928MHz(other frequency can be customized)
Frequency Hopping	FHSS
Power Output	0-30dBm(adjustable)
Antenna	8dBi
Interface	WIFI, RS232, RS485, Wiegand 26/34
Read Mode	Answer, Active, Trigger
Read Range	0-5m
Write Range	0-m
Reading Clue	Buzzer
Power	DC+9V (Power Adapter)
Dimension	23523557mm
N.W	0.9Kg
G.W	2.5Kg
Operation Temp	-10°C ~ +60°C
Storage Temp	-25°C ~ +80°C
Additional services	Provide Demonstration software and SDK for further development

ICR-350 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. Especially used to identify tags and write data into tags in long distance. It can be widely applied in indoor and outdoor conditions as below:

Applications:

♦ Logistics System

♦ Parking system, Vehicle Management,e-toll

♦ Access control

♦ Digital Warehouse Management
