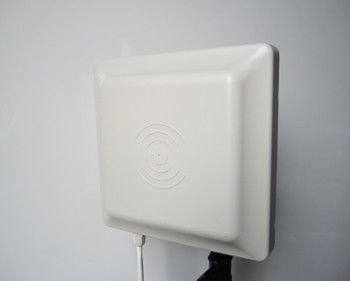

High Performance 3-5 Meters UHF Card Reader RS232 RS485 Wiegand Interface

: Large Image : High Performance 3-5 Meters UHF Card Reader RS232 RS485 Wiegand Interface

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	ISO 9001:2008,CE,Rohs
Model Number:	ICR-350

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	1pc/carton standard package
Delivery Time:	1 days after get payment if less 100 unit
Payment Terms:	T/T
Supply Ability:	1,0000 set/month

Detailed Product Description

High Performance 3-5 Meters UHF Card Reader With RS232 RS485 Wiegand Interface

ICR-350 UHF card reader is a High Performance UHF integrated reader for long range operation. Compact Reader with integrated 8dBi circular polarized UHF Far Field antenna,.Based on proprietary efficient digital signal processing algorithm,the reader is capable of up to 6m Read Range and 3m Write Range.The reader operates in frequency range of 860MHz-928MHz design to read ISO18000-6C and ISO18000-6B protocol ID Tag.

The reader can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.

Applications:

♦ Logistics System

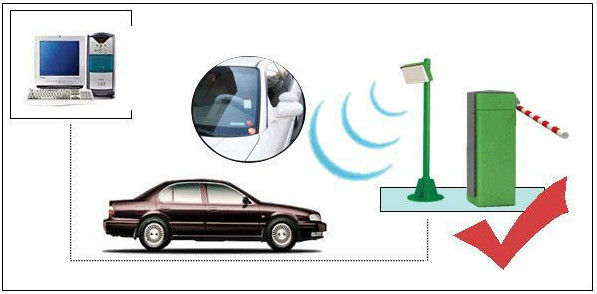

♦ Parking system, Vehicle Management,e-toll

♦ Access control

♦ Digital Warehouse Management

Features:

1.Self-intellectual property

2.Max reader range 6m

3. Durable and cost effectives

4.All frequency band in the world available Compatible with EPC G2(ISO 18000-6C) or ISO18000-6B

5.Water and dust proof, anti-interference, can work under thunder and light, IP55 Splash Proof

6. Easy to install with enclosure up-and-down adjustable bracket

Functions

Functions
Operating Frequency	International(920-925MHz)
	USA(902-928MHz)
	Others(Customized Tag)
Protocol	ISO18000-6C(EPCGEN2)
Protocol	ISO18000-6B
Frequency Hopping Mode	Fixed Frequency Band and FHSS Software Programmable
Antenna	8dBi circular polarize antenna (Integrated)
Power size	0dBi-30dBi(Adjustable)
Read/Write Range	Max Read Range:6m, Max Write Range:3m
Read/Write Range	Distance depends on Reader&Antenna output Power
Operating Mode	Master-Slave Mode(Online Mode)
	Time Scheduled Modes
	Trigger Mode
Connecting Ports
Power	12V
Communication Port	RS-232
	Wiegand Interface:Wiegand26&Wiegand34Supported
	RS-485
	10/100M Ethernet,GPRS.WIFI(for Customized Model only)
Trigger	1xTriggerLevelInput
General Purpose	2xGPIO
Operating Environment
Operation	-20~+60
Storage	-45~+85
Physical Parameter
Dimension	227mm×227mm×60mm
Weight	1.8Kg
Accessories
Power Supply	AC110-220V/DC+12V
Cables	Power Cable
Cables	RS232SerialCable
Brackets	Pole Mount Adapter
Software Pack(Optional)	API Software Development Kits complete with VB,C#Sample Program
