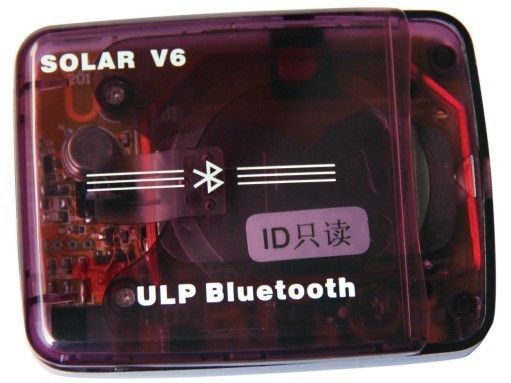

Solar IC Dual-Card RFID Smart Card 433MHZ With Anti-Theft Function

Solar IC Dual-Card RFID Smart Card 433MHZ With Anti-Theft Function

Introduction:

With social development and scientific technology innovation, products’ upgrading and updating becomes

the top priority of companies’ survival and development. Nowadays, parking system industry is severely

competitive. Holding “Being Unique, Being Excellent” as our mission, we develop solar IC dual-cards for

parking system upgrading.

Solar IC dual-card is the intelligentized and high-end products for vehicle dispatch in government and

non-stop punching cards in high-grade property.

Technical Data:

1. v Dimension: 80*61*15mm
2. v Transmitting Frequency: 433MHZ
3. v RF Power:<1milliwatt
4. v Standby Current: ≤6uA
5. v Working Current: ≤300 uA
6. v Reading/Writing Speed: ≥100kbit/sec(60KM/HR)
7. v Receiving Angel: 120 degree
8. v Card No. Digit: 4 bytes
9. v Card Type: IC card(Mifare)/ID
10. v Working Mode: Wake-up mode(sleeping mode without signal)
11. v Battery Specification: 2450 button battery

Functional description :

v  Solar charging

v  Anti-removal function(optional)

v Compatible function

v Binding Function

v Reading Indicator

v  Key Management Function

v  Anti-theft function

v  Strong Penetration
