| Material Options: | Nylon | Frequency: | 860-960 Mhz |
|---|---|---|---|
| Model: | RFID-207 | Surface Options: | Glossy, Matte |
| Weight: | 5.8g+/-0.5g | Color: | Green,yellow,blue,etc. |

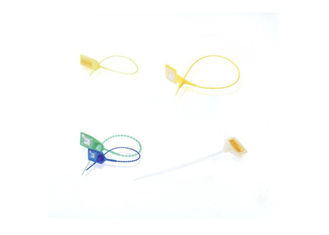

840-960mhz LF / HF / UHF Rfid Cable Tie Tag Waterproof Nylon
It can handle various applications. such as the inventory system, cable management system etc,The key advantage is: it is a wafer/dust proof tag, and can be straped to the object you want to identify in very harsh environment.
Normally the cable tie TAG is used for warehouse management, the chip inside is of UHF , which is a passive but have a good feature of long read range about 3-10metres based on the reader antenna size.
RFID Cards Specifications:
|
1.Model |
RFID Cable Tie Tag |
|
2.Material: |
PE,NYLON,silicone,or customized |
|
3.Dimension: |
33CM(different size available or Customized) SlotSize / FlagSize:110*30mm Bundle Length(Max):Dia75mm |
|
4.RF Protocol: |
EPC/ISO18000-6C EPCClass1Gen2 |
|
5.OperatingFrequency |
860MHz to 960MHz |
|
6.ChipType |
ALIEN H3 (9662) and also can be customized |
|
7.Read Distance: |
3-5m,up to working environment and reader |
|
8.Break Strength: |
F≥800N |
|
9.Humidityenvironment: |
Suitable for indoor and outdoor usedirt,dust, and water resistant |
|
10.Available crafts: |
Logo printing,series number, barcode |
|
11.Operating Temperature |
-40°Cto65°C |
|
12.Storage Temperature |
-40°Cto85°C |
|
13.Data Retention |
>3years |
|
14.Applications: |
1.Access management 2.Tracking goods 3.Tracking of persons and animals 4.Toll collection and contactless payment 5.Machinereadabletraveldocuments 6.Smart dust(form assively distributed sensor networks) 7.Airport baggage tracking logistics |
|
15.Leadtime |
5~7days (100% payment in advance before production) |
|
16.Package details: |
100pcs/box,2000pcs/carton,14kg/carton |
|
17.SampleAvailability: |
Free samples are available up on request. |
