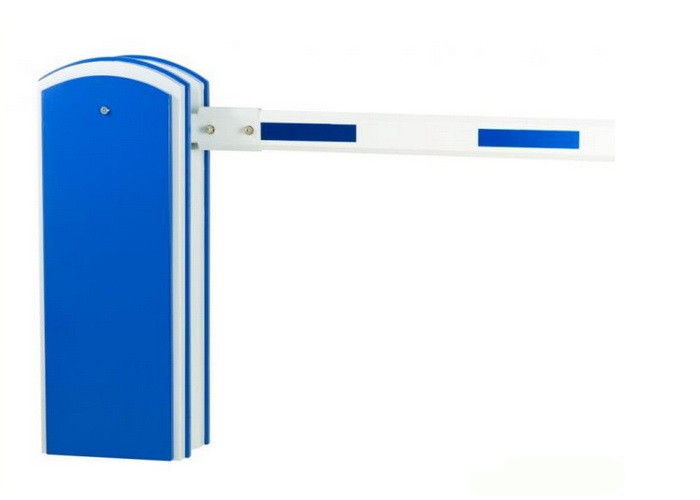

Intelligent Automated Parking Barrier Gate For Vehicle Access of Shopping Mall

Intelligent Automated Parking Barrier Gate For Vehicle Access of Shopping Mall

IBG-202 Barrier Gate uses the durable motor. It is stable and has long service life performance,

running five million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted,

so that the barrier can work with parking system very well, and can be used in door and outdoor.

Function & Features:

Advanced manual clutch

Boom can rise and fall on left/right sides by setting on the same machine

No need to adjust to he balance spring when changing the booms shorter than 4 meters

Adopt the 3rd generation Winstar machine core designing

Support the external and internal LOOP DETECTOR (optional)

Auto-closing

Special art and craft makes out the most modernized and fashionable housing, stainless

Product Parameter:

Size: L340 mm×W280 mm×H1040mm (Main body)

Weight: 65kg (without packing)

Color: powder coated yellow / orange as standard

Arm: 2m to 4m straight pole (fold & fence for option, 6m for 6s)

Operation life cycle: 3.5 million time

Opening /close time: 3s as standard

Working voltage: AC230V±15%, 50Hz (default)

Working temperature: -30°C +40°C (default)

Left-hand or right-hand site configuration for choice

100% continues duty cycle rated

Special device for open barrier manual in case power off

Advanced motor with thermal protection, automatically power-off

in case the device over 135°C

Competitive Advantage:

• Professional: We are a leading manufacturer of automatic barrier gate in China . We have a strong
• professional team with 8 years experiences.
• New Product: We keep on developing new product. Our goal is to enhance our competitive capacity
• constantly.
• QC: we do 100% inspection before the shipment.
• Promise: we are always ready to take the responsibility if any loss caused to our customer due to
• our mistakes.
• Credibility: We are SGS certificated Supplier. Our customers are located over 50 countries
• Gratitude: We cherish the business chance you give us and return you with quality products and
• good service.
• Customizable: Design products according to customers’ requirements.
• MOQ: 1 unit. We keep stock for regular products. our shortest lead time is just 3 days.
• Price: very competitive price and good quality products
