Electric Fence Arm Traffic Security Barrier Gate System With 3m Boom Barrier

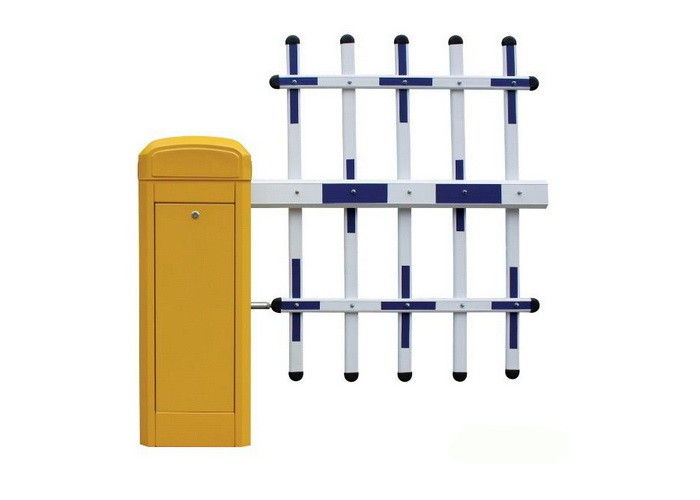

: Large Image : Electric Fence Arm Traffic Security Barrier Gate System With 3m Boom Barrier

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	CE, ISO, SGS
Model Number:	IBG-407

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	Carton(1 unit): 1020375467mm
Delivery Time:	5~15
Payment Terms:	T/T
Supply Ability:	3000units per month

Detailed Product Description

Model:	IBG-407	Color:	Optional
Weight:	65kg	Power Frequency:	50/60Hz
Steel Thickness:	2.5mm	Voltage:	AC 220v, 110v
Material:	Cold-rolled Steel Plate	Dimension:	1020375467mm

Electric Fence Arm Traffic Security Barrier Gate System With 3m Boom Barrier

IBG-407 use the very durable and stable motor, beautiful and effective structure to reduce mechanical failure,with the charactersitics of maintenance free and environment protection.The barrier boom is made

of high strength aluminum alloy covered with shining film, good performance of prompting even in the evenning. Beautiful design, effective performance and reasonable price make it superior to the similar products.

Specifications

1. Color available (yellow, blue, red)

2. Applications: control and management of parking lots, toll gates, goods yards, railway crossings,

highway toll station, commercial premises, and apartment block access,

3. Manual operation in case of power failure.

4. Built-in control panel, available to IC card reader.

5. heat-protection with motor cooling fan

6. Support the Infrared Photocell for anti-bumping function (optional)

7. Support the external and internal Vehicle Loop Detector (optional)

8. water proof, dust proof, anti rust proof coating, it does not fade in 3 to 5 years

9. High reliability and low maintenance

10. Quick speed and silent operation

11. Straight arm boom gate can be made based on the width design of road surface. It is clear cut

and highly visible and is ideal for freeway junctions.

12. The base of the anti-crash arm is made of soft rubber material which has a special function in

avoiding damage to vehicles and pedestrians when the gate is not functioning properly due to

human operation error or mechanical malfunctioning.

13. In case of electric failure or trouble, it can manually operate the movable barrier to return to the

position.

Technical data:

IBG-407
Arm Type	Fence Arm
Arm material	aluminum alloy
Arm length	≤ 6.0m
Rail up or down time	1.8s-6s optional
Motor power	AC220/50Hz
Frequency	50~60Hz
Protection class	IP65
Operating temperature	-45 to 80
Operating humidity	≤ 90% non-condensing
Dimensions	345x295x1000
Material	2.5mm cold-rolled steel plate with waterproof and rustproof coating
Communication Interface	Standard RS485
Communication Range	800-1200m
Functions	remote control
	Anti-bumping function to protect cars and pedestrain
	Solid and endurable structure, strong bearing capacity
	Manual operating mode is provided
	In case of electric failure or trouble, it can manually operate the movable barrier to return to the horizontal position
