Rfid Automatic Card Dispenser Machine Or Vending Mechanism For Ticket Kiosk

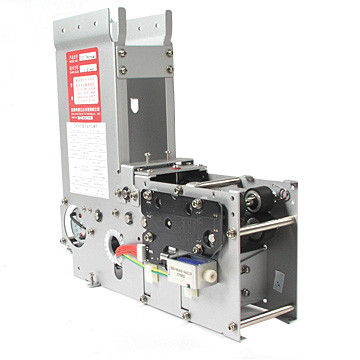

: Large Image : Rfid Automatic Card Dispenser Machine Or Vending Mechanism For Ticket Kiosk

Detailed Product Description

Rfid Automatic Card Dispenser Machine Or Vending Mechanism For Ticket Kiosk

Application:

Automatic card vending machine, ticket vending system

Parking Management system

Card initialization Batch

Highway card issuing system

Main characteristics

Industrial design, adjust to high temperature and other bad environments;
Simulated manpower friction card issuers, better adaptability to various deformed cards;
Watchdog of hardware and embedded operating system to ensure properly running;
Pre-dispense function accelerate dispensing speed;
Connectable with the vehicle detector to achieve card issuing and “one car, one card”;
Automatic buzzer alarm when no cards, fewer cards or failure.
Provide both RS232 and I/O voltage control interface;
Automatic buzzer alarm when errors occur, automatic reset after 100 seconds alarm;
Capacity of card stacker is more than 40pcs, automatic buzzer alarm when the withdrawing stacker is full;
Slide card stacker with a capacity of 40pc;
Adjustable of card stacker with a capacity of 120pc each;
Automatic withdrawal to prevent card lost (only for TCD800F series
Slide design to make installation and disassembling easier;
Molded production to ensure high consistency of precision and quality.

Main technical data

Length: 85+/-0.5mm

Thickness: 0.3-2.5mm (adjustable)
Card material: Paper or Polyester card
Net weight of card dispenser: 2.0kg (including the briquette)
Time of issuing: max0.5s
Capacity of stacker: 150pcs (0.8mm), 100pcs available when an extra stacker is needed, 600pcs(KTCD920)

Specifications:

Model	ICD-200
Features	Plastic frame module, IC/RFID card read/write
	Dispense/capture/accept card
	Removable stacker options
	Very compact & robust
Application	Card parking system
	Card issuing machine
	Card vending machine
Motor	2pcs
Card standard	IC Card: ISO7816 RFID Card: ISO14443 Type A/B
Card Thickness	0.4-1.0mm
Storage Capability	1000pcs(0.76mm standard card)
Communication	RS-232 /USB
Power supply	DC 24V+/-5%
Temperature/Humidity	Operation: 0-50°C/0-90%RH(Non-condensing) Storage: -10-75°C/0-90%RH(Non-condensing)
Dimension	23078228mm
Weight	Approx. 4.5kg
