Kiosk Rfid Card Dispenser Machine Or Ticket Dispenser RS - 232 USB

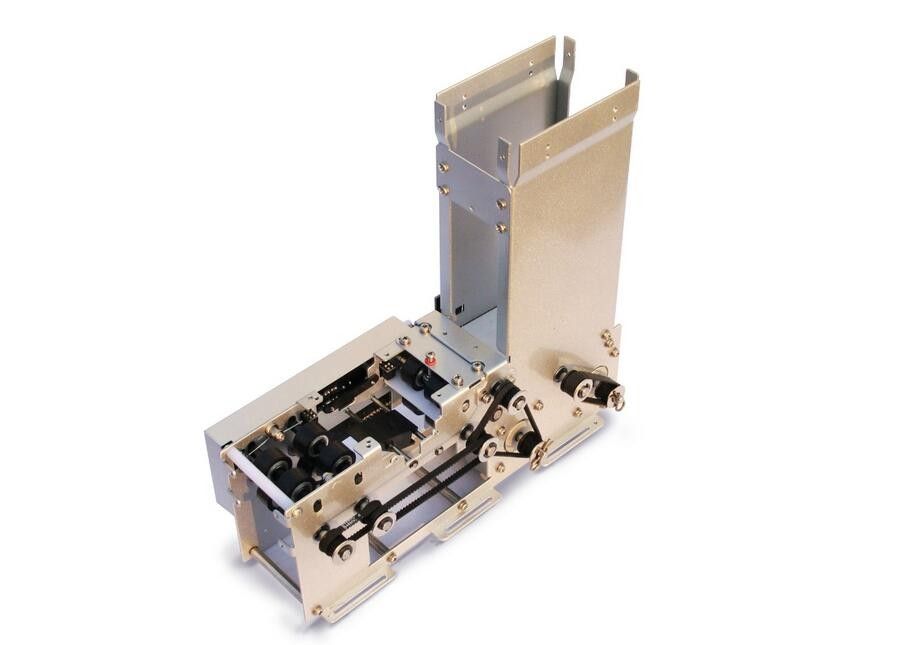

: Large Image : Kiosk Rfid Card Dispenser Machine Or Ticket Dispenser RS - 232 USB

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	ISO 9001:2008,CE,SGS
Model Number:	ICD-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 0~150 /unit
Packaging Details:	carton
Delivery Time:	2-5 working days
Payment Terms:	T/T
Supply Ability:	5000 unit per month

Detailed Product Description

Model:	ICD-200	Communication:	RS 232
Power Supply:	DC 24V+/-5%	Material:	Iron
Dimension:	23078228mm	Weight:	4.5kg

Kiosk Rfid Card Dispenser Machine Or Ticket Dispenser RS - 232 USB

Specification

Industrial design, compact structure, simple and reliable control interface
Good resistance to abrasion and corrosion,fit for high and low temperature environments.
Simulation manpower friction card issuers ,better adaptability to various deformed cards
Watchdog of hardware and micro-embedded real-time operating system to ensure reliable operation
Pre-dispense function accelerate dispensing speed
Direct connectivity to inductor
Automatic buzzer alarm when fewer cards, no cards or failure
Provide RS232 and I / O voltage two control interface
Card recycling capacity is 40pcs, automatic buzzer alarm when cards warehouse is full
Automatic reset: after the wrong alarm 100 seconds
Security recoveries: prevent cards lost (only ICD820 series)
Adjustable capacity of Card warehouse
Card thickness: 0.2mm-1.5mm (adjustable) ((Ex-work setting: 0.8mm)
Motherboard slip design makes the installation and removal simple, convenient and fast
Die-wide production ensure the products ’ quality and consistent

Technical data:

Operating Voltage: 24VDC (MAX current 2A, static current 0.1A)
Operating temperature: -20℃ to 80℃
Operating relative humidity: 30%-90%
Used condition: installed in bin
Card Material: Paper or Polyester card.
N. W: 2.0Kg (Include cards pressure block)
Card dispensing speed: about 0.5s
Card size: 54*78*0.3-2.5mm(W*L*H)
Card capacity: 150pcs (According to card thickness: 0.8mm/pcs)
Adding a lengthen box can add the card capacity

Application:

Automatic card vending machine, ticket vending system

Parking Management system

Card initialization Batch

Highway card issuing system

Specifications:

Model	ICD-200
Features	Plastic frame module, IC/RFID card read/write
	Dispense/capture/accept card
	Removable stacker options
	Very compact & robust
Application	Card parking system
	Card issuing machine
	Card vending machine
Motor	2pcs
Card standard	IC Card: ISO7816 RFID Card: ISO14443 Type A/B
Card Thickness	0.4-1.0mm
Storage Capability	1000pcs(0.76mm standard card)
Communication	RS-232 /USB
Power supply	DC 24V+/-5%
Temperature/Humidity	Operation: 0-50°C/0-90%RH(Non-condensing) Storage: -10-75°C/0-90%RH(Non-condensing)
Dimension	23078228mm
Weight	Approx. 4 kg
