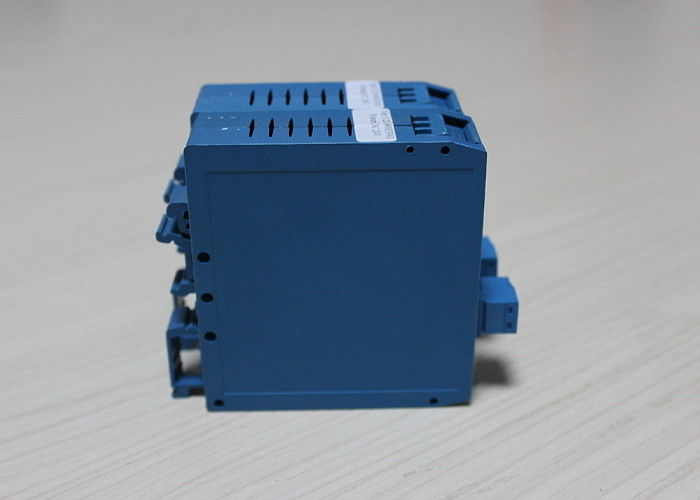

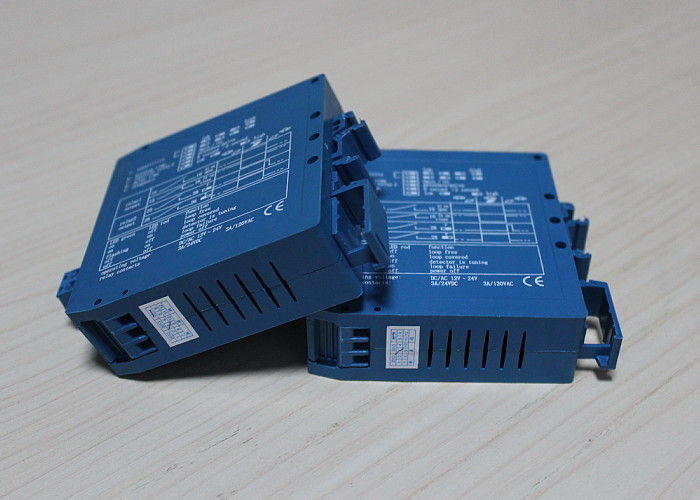

Blue ABS DIN Install Vehicle Loop Detector Without Stocket For Barrier Gate

Blue ABS DIN Install Vehicle Loop Detector Without Stocket For Barrier Gate

IVD-M1H is a single channel inductive loop detector. Wire connect directly without socket.

The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles.Like monitoring and safe guarding access ways to counting vehicles.

The output signal can be used for controlling door and gate drive mechanisms, operating barriers,

controlling traffic light systems in car parks or activating card dispensers in car parks.

Applications:

Vehicle detect

Adaptive Urban Traffic Control

System and Advanced Detectors

Interchange/Toll plaza traffic monitoring

MAIN FEATURES :

1) Presence output time can be adjustable ;

2) Work mode can be set by the DIP switch ;

3) Pulse output or permanent output can be adjustable.

4) ABS align to the pillar which can combine with each other compactly ;

5) When the DIP switch is on position or changing the presence output time, Self-detection

    would be done ;

TECHNICAL DATA :

1) Power Supply : AC/DC  12~24V

2) Power Consumption : 3W maximum

3) Output Relay : 120V/3A AC

4) Work Temperature : -20^oC ~ +70^oC

5) Loop Inductance Range : 50μH ~ 800μH ( ideal 100μH ~ 300μH )

6) Reaction time: 10ms

7) Self-calibrating : 1s to 2s

8) Sensitivity : 4 levels adjustable

9) Work Frequency : 20kHz ~ 130kHz

10) Dimension : 79×22.5×90mm ( L×W×H )
