Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Color: | Red |
|---|---|---|---|
| Reaction Time: | 10ms | Dimension: | 78x40x108 Mm |
| Gross Weight: | 340g | Communication: | TTL |

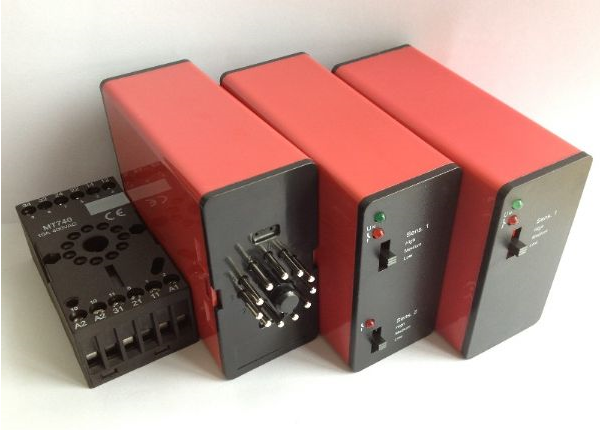

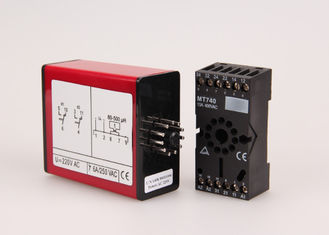

Red Single Vehicle Loop Detector For Automatic Gate Of Parking System
Description:
The loop detector is composed of two parts: Ground induction coil and processor. The processor is used to check the vehicles passing by the ground induction coil, collecting induction signals and export corresponding pulse signals. The quantity of the passing vehicles may be judged by different output ports of the pulse signals through setting up different induction sensitivity and working frequency for preventing against mutual interference.
Application:
Traffic light
Vehicle monitor
Highway toll system
Parking lots toll system
Product Features:
High temperature stability, used in kinds of environment
Environment drifting compensate automatically
Multilevel lightning protection
With function of sensing loop malfunction automatically (disconnection or cutting-out)
Cooperate with barrier gate to realize vehicle anti-hit and automatic close function
Specifications:
|
Supply Voltage: |
AC220V, AC110V, AV/DC12V 24V |
|
Frequency range: |
29 KHz-90 KHz |
|
80uH-300 uH |
80uH-300 uH |
|
Communication |
TTL |
|
Power supply |
AC220V, AC110V, AV/DC12V 24V |
|
Temperature/Humidity |
Operation: -20-65°C/0-90%RH(Non-condensing) Storage: -40--85°C/0-90%RH(Non-condensing) |
|
Dimension |
78x40x108 mm |
|
Gross Weight |
340g |
