Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Color: | Black |
|---|---|---|---|
| Reaction Time: | 10ms | Sensitivity: | Adjustable |
| Dimension: | 78x40x108 Mm | Gross Weight: | 335g |

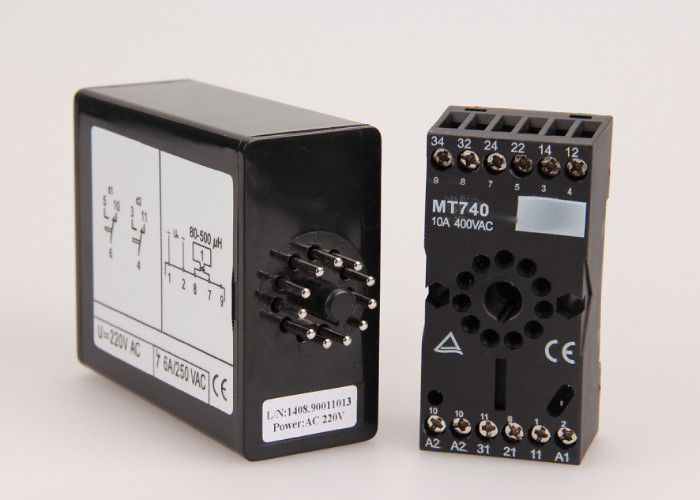

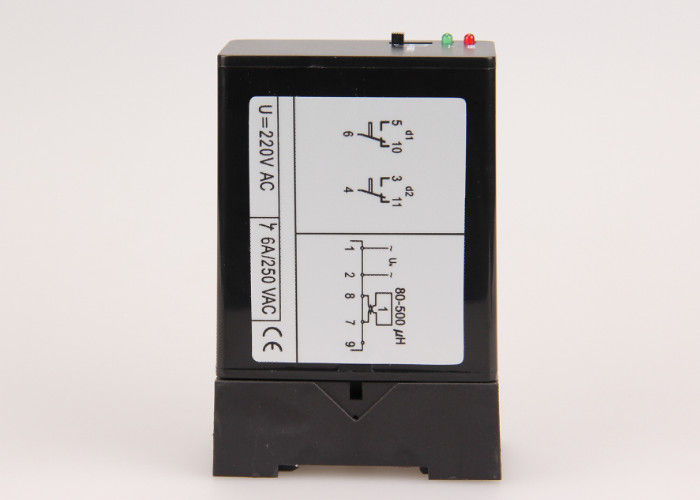

Car Detection Sensor Vehicle Loop Detector Parking Management System
Description:
Loop Detector Systems are used for indicating the presence or passage of vehicles. A system consists of an inductive loop and a detector module from Wafer. Applications include traffic signal control, access control in car parks gate operator and vehicle counting.
Application:
Highway Tolling System
Parking Guidance System
Parking Management system
Garage or Gete Opener
Product Features:
High temperature stability, used in kinds of environment
Environment drifting compensate automatically
Multilevel lightning protection
With function of sensing loop malfunction automatically (disconnection or cutting-out)
Cooperate with barrier gate to realize vehicle anti-hit and automatic close function
Specifications:
|
Supply Voltage: |
AC220V, AC110V, AV/DC12V 24V |
|
Frequency range: |
29 KHz-90 KHz |
|
80uH-300 uH |
80uH-300 uH |
|
Communication |
TTL |
|
Power supply |
AC220V, AC110V, AV/DC12V 24V |
|
Temperature/Humidity |
Operation: -20-65°C/0-90%RH(Non-condensing) Storage: -40--85°C/0-90%RH(Non-condensing) |
|
Dimension |
78x40x108 mm |
|
Gross Weight |
Approx. 340g |
