Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Color: | Red |
|---|---|---|---|
| Reaction Time: | 10ms | Sensitivity: | 3 Grade |
| Dimension: | 78x40x108 Mm | Gross Weight: | Approx. 340g |
| Operating Temperature: | -20°C To +65°C | Storage Temperature: | -40°C To +85°C |

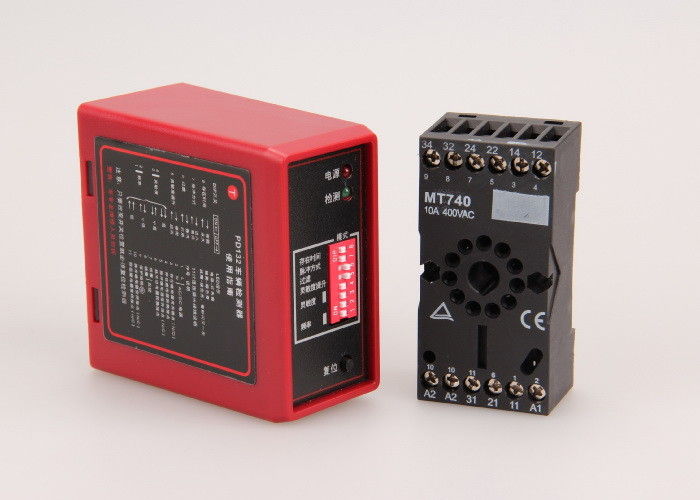

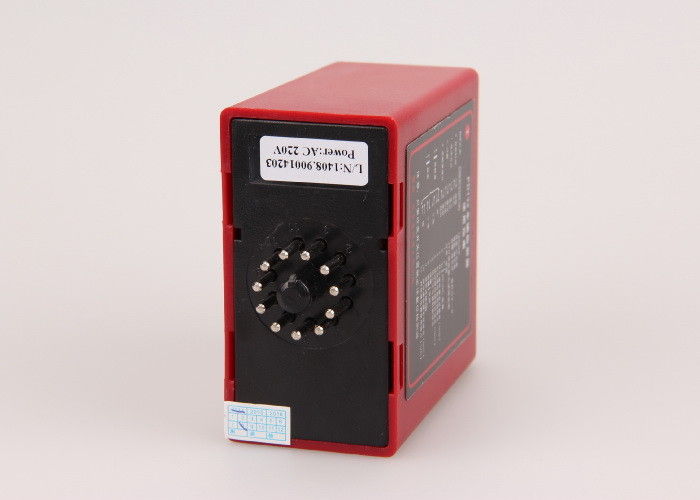

Intelligent Car Parking System Single Loop Vehicle Sensor To Detect Motor Vehicle
Description:
PD-132 vehicle loop detectors provide customers with a safety detector that can prevent accidents which occur when power outages cause vehicle access control systems to reset their logic boards. They incorporate an advanced micro-controller that combines a powerful digital computer and the latest and most advanced inductive vehicle loop technology to give high-test reliability and accuracy when measuring, counting or detecting vehicles when passing through any residential or commercial gate operator.
Application:
Gate Opener
Traffic light
Vehicle monitor
Highway toll system
Parking lots toll system
Specifications:
|
Operating voltage: |
220V AC(Default, or 110VAC) |
|
Power Consumption: |
<5W |
|
Output : |
Relay Output |
|
Frequency range: |
20 KHz to 170 KHz (4 grades adjustable) |
|
Reaction time: |
10ms |
|
Signal holding time: |
Unlimited / limited 10 minutes when loop is permanently covered |
|
Sensitivity: |
3 grades |
|
Loop inductance: |
Ideal 100μH to 300μH (include connecting wiring) |
|
|
Max 50μH to 1000μH (include connecting wiring) |
|
Loop Wiring: |
Max. 100m, twisted at least 20 times per meter, total resistance <10 Ohm |
|
Auto correcting time: |
1s to 2s |
|
Operating temp: |
-30℃ to +70℃ |
|
Storage temp: |
- 40℃ to + 85℃ |
|
Relative humidity: |
≤ 95% |
|
Dimensions: |
78×40×108 mm (L×W×H) (include socket ) |
|
Net Weight: |
340g(include socket) |
|
Dimensions |
78x40x108 mm |
