| Model: | ICD-200 | Communication: | RS 232 |
|---|---|---|---|
| Power Supply: | DC 24V+/-5% | Material: | Iron |
| Dimension: | 230*78*228mm | Weight: | 4.5kg |

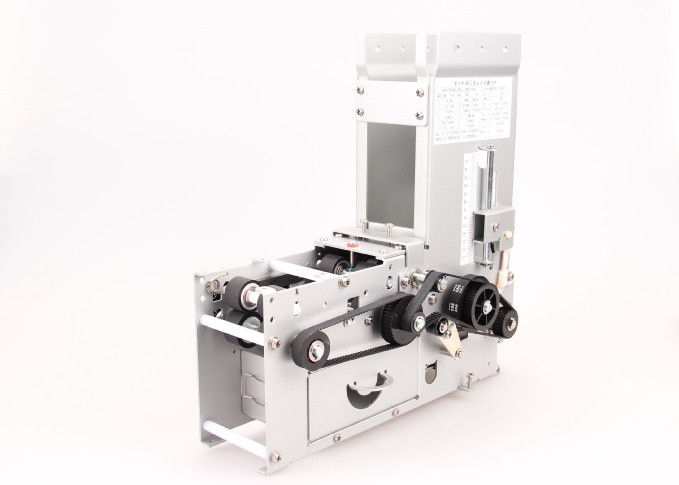

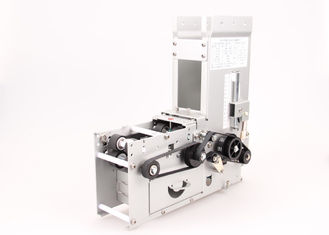

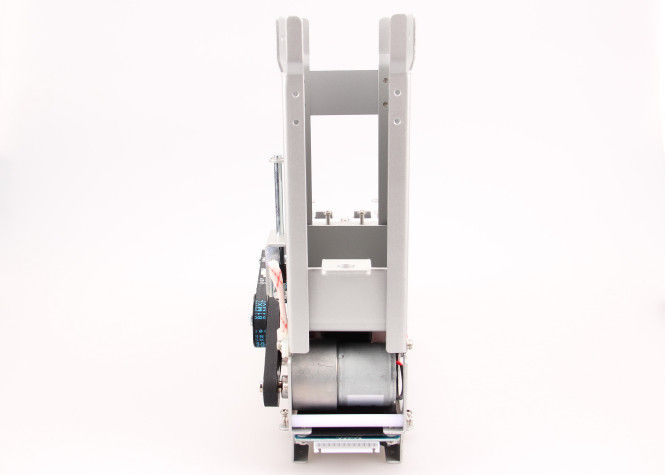

Parking Access Control RFID Card Dispenser Ticket Vending And Issuing Machine
Automatic RFID Smart Card collector for TCP/IP Parking ICD-200
Parking Access Control Automatic Smart Card Collector for parking lot access ICD-200
TTL and RS323 interface motor card dispenser ticket machine parking system
Card dispenser for parking and high-way toll station
Auto card dispenser DC24V RFID card reader/writer
New style hot sale automatic kiosk rfid ic card dispenser
Application:
Automatic card vending machine, ticket vending system
Parking Management system
Card initialization Batch
Highway card issuing system
Main characteristics
1) Industrial design, adjust to high temperature and other bad environments;
2) Simulated manpower friction card issuers ,better adaptability to various deformed cards;
3) Watchdog of hardware and embedded operating system to ensure properly running;
4) Pre-dispense function accelerate dispensing speed;
5) Connectable with the vehicle detector to achieve card issuing and “one car, one card”;
6) Automatic buzzer alarm when no cards, fewer cards or failure.
7) Provide both RS232 and I/O voltage control interface;
8) A utomatic buzzer alarm when errors occur, automatic reset after 100 seconds alarm;
9)Capacity of card stacker is more than 40pcs, automatic buzzer alarm when the withdrawing stacker is full;
10) Slide card stacker with a capacity of 40pc;
11) Adjustable of card Holder with a capacity of 120pc each;
12) Automatic withdrawal to prevent card lost
13) Slide design to make installation and disassembling easier;
14) Molded production to ensure high consistency of precision and quality.
Specifications:
|
Model |
ICD-200 |
|
Features |
Plastic frame module, IC/RFID card read/write |
|
Dispense/capture/accept card |
|
|
Removable stacker options |
|
|
Very compact & robust |
|
|
Application |
Card parking system |
|
Card issuing machine |
|
|
Card vending machine |
|
|
Motor |
2pcs |
|
Card standard |
IC Card: ISO7816 RFID Card: ISO14443 Type A/B |
|
Card Thickness |
0.4-1.0mm |
|
Storage Capability |
1000pcs(0.76mm standard card) |
|
Communication |
RS-232 /USB |
|
Power supply |
DC 24V+/-5% |
|
Temperature/Humidity |
Operation: 0-50°C/0-90%RH(Non-condensing) Storage: -10-75°C/0-90%RH(Non-condensing) |
|
Dimension |
230*78*228mm |
|
Weight |
Approx. 4.5kg |
