Product Details:
Payment & Shipping Terms:
|
| Model: | ICD-500 | Storage Capability: | 1000pcs Cards |
|---|---|---|---|
| Power Supply: | DC 24V+/-5% | Material: | Iron |
| Dimension: | 230*78*228mm | Weight: | 4.5kg |

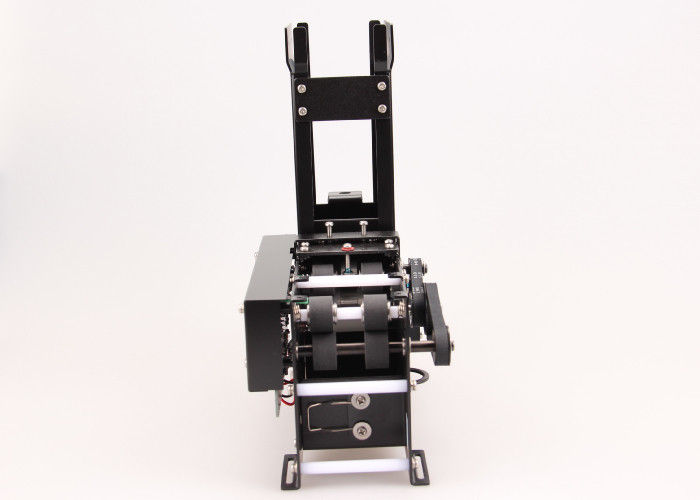

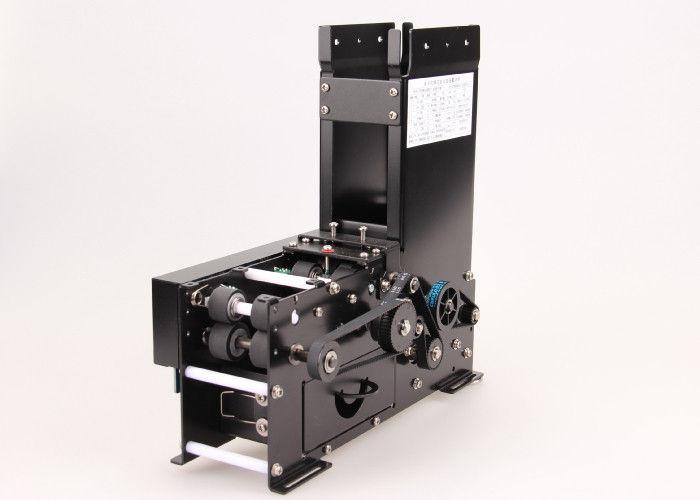

Payment Kiosk RFID Card Dispenser Machine For Parking Management System
TTL and RS323 interface motor card dispenser ticket machine parking system
Card dispenser for parking and high-way toll station
Auto card dispenser DC24V RFID card reader/writer
New style hot sale automatic kiosk rfid ic card dispenser
Application:
Automatic card vending machine, ticket vending system
Parking Management system
Card initialization Batch
Highway card issuing system
Vending Kiosk
Main characteristics
1) Industrial design, adjust to high temperature and other bad environments;
2) Simulated manpower friction card issuers ,better adaptability to various deformed cards;
3) Watchdog of hardware and embedded operating system to ensure properly running;
4) Pre-dispense function accelerate dispensing speed;
5) Connectable with the vehicle detector to achieve card issuing and “one car, one card”;
6) Automatic buzzer alarm when no cards, fewer cards or failure.
7) Provide both RS232 and I/O voltage control interface;
8) Automatic buzzer alarm when errors occur, automatic reset after 100 seconds alarm;
9) Molded production to ensure high consistency of precision and quality
10) Slide card stacker with a capacity of 40pc;
11) Adjustable of card Holder with a capacity of 120pc each;
12) Automatic withdrawal to prevent card lost (only for TCD800F series
13) Slide design to make installation and disassembling easier;
14) Capacity of card stacker is more than 40pcs, automatic buzzer alarm when the withdrawing stacker is full
Specifications:
|
Model |
ICD-500 |
|
Features |
Plastic frame module, IC/RFID card read/write |
|
Dispense/capture/accept card |
|
|
Removable stacker options |
|
|
Very compact & robust |
|
|
Application |
Card parking system |
|
Card issuing machine |
|
|
Card vending machine |
|
|
Motor |
1pcs |
|
Card standard |
IC Card: ISO7816 RFID Card: ISO14443 Type A/B |
|
Card Thickness |
0.4-1.0mm |
|
Storage Capability |
1000pcs(0.76mm standard card) |
|
Communication |
RS-232 /USB |
|
Power supply |
DC 24V+/-5% |
|
Temperature/Humidity |
Operation: 0-50°C/0-90%RH(Non-condensing) Storage: -10-75°C/0-90%RH(Non-condensing) |
|
Dimension |
230*78*228mm |
|
Weight |
Approx. 4.5kg |
