Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Weight: | 300g |
|---|---|---|---|
| Dimension: | 78x40x108 Mm | Power Supply: | AC220V, 110V DC 24V, 12V |
| Frequency Range: | 20 KHz To 170 KHz | Sensitivity: | 3 Grade |
| Loop: | Double Loop | Reaction Time: | 100ms |

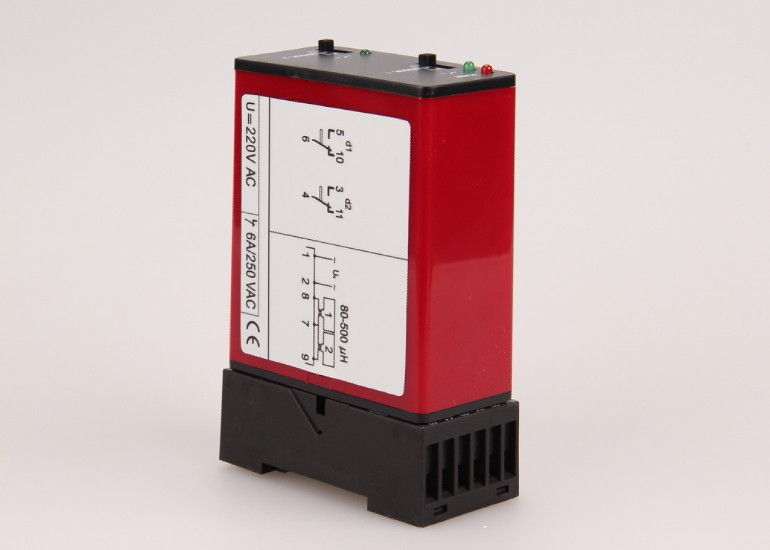

Double Channel Induction Vehicle Loop Detector Car Detection Sensor 110V 12V
Description
IVD-410 has two-way output relays. Two outputs of them are unlimited when the corresponding loop is permanently covered,while the others are multi-mode that can be set by users. The direction detecting Function can be used to statistics the vehicle flux. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.
Application
Loop detectors are used wherever vehicles have to be detected, for example: monitoring and safe guarding access ways or counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems in car parks or activating card dispensers in car parks.
Technical Data
Supply voltage AC: 220V, 110V, 24V, 12V
Supply voltage DC: 24V, 12V
Sensitivity: adjustable in 3 increments (high .medium. low)
Operating temperature: -20°C to +70°C
Storage temperature: -40°C to +85°C
Frequency range: 20 kHz to 170 kHz
Reaction time: 100ms
Loop inductance: Ideal:80μH to 300μH
(incl. conn. wiring) : max:50μH to 500μH
Loop connection: <5m optimal
Loop connection wiring: Maximum length 200 meters, Twisted at least 20 times per meter
Dimensions: 74 x36x85 mm (WxHxL)
Net Weight: 340g
