| Material: | ABS | Color: | Blue |
|---|---|---|---|
| Reaction Time: | 10ms | Sensitivity: | 4 Grade |
| Dimension: | 79×22.5×90mm | Gross Weight: | 250g |

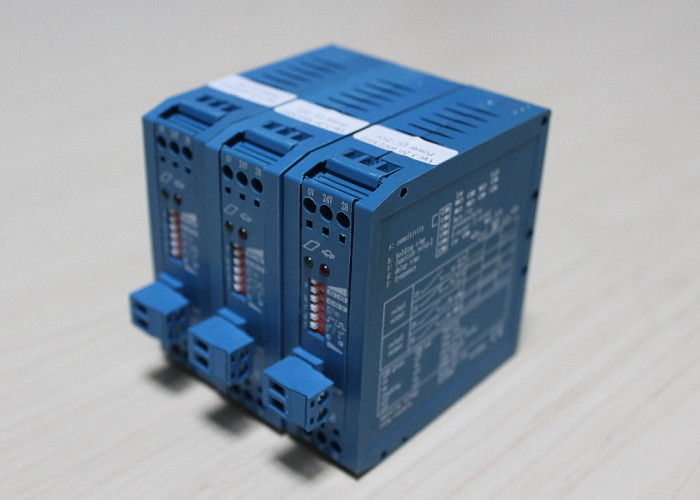

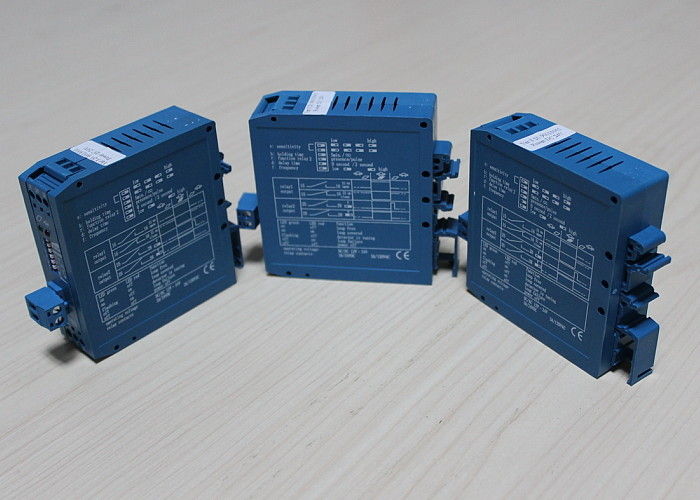

Blue ABS Four Grade Sensitivity Traffic Loop Detectors No Need 11 Pins Socket
IVD-M1H-1 single loop detector is used for wherever vehicles have to be detected , for example for
monitoring and safe-guarding accessways or for counting vehicles. The output signal can be
used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light
systems or activating card dispensers in parking lots. It has two way output relays, one is
unlimited output when the loop is temporarily covered, while the other is multi-mode that can
be set by users .
Applications:
Mid-block detectors
Adaptive Urban Traffic Control
System and Advanced Detectors
Parking Lots Tolling System
MAIN FEATURES :
1. Using the detection circuit with specially high performance design and with advanced digital signal
processing algorithms.The actual detection proved that it reached the most advanced international level.
2. Against the variety of detector products , with the learning functions of automatic identification.
Overcome the effect of products material efficiently.
3. Detection probe is designed specially and improved the detection sensitivity further. Improve the
detection sensitivity.
TECHNICAL DATA :
1) Power Supply : AC/DC 12~24V
2) Power Consumption : 3W maximum
3) Output Relay : 120V/3A AC
4) Work Temperature : -20oC ~ +70oC
5) Loop Inductance Range : 50μH ~ 800μH ( ideal 100μH ~ 300μH )
6) Work Frequency : 20kHz ~ 130kHz
7) Sensitivity : 4 levels adjustable
8) Self-calibrating : 1s to 2s
9) Dimension : 79×22.5×90mm ( L×W×H )
10) Reaction time: 10ms
