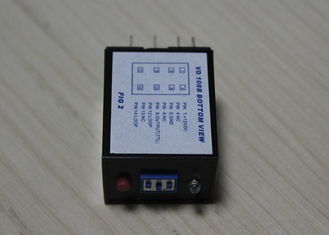

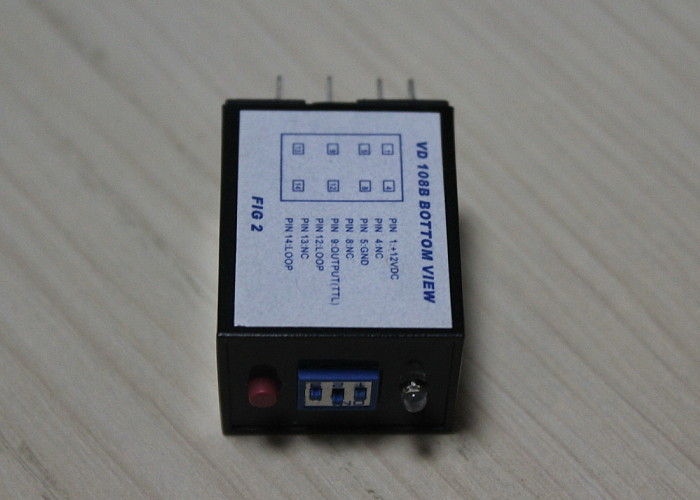

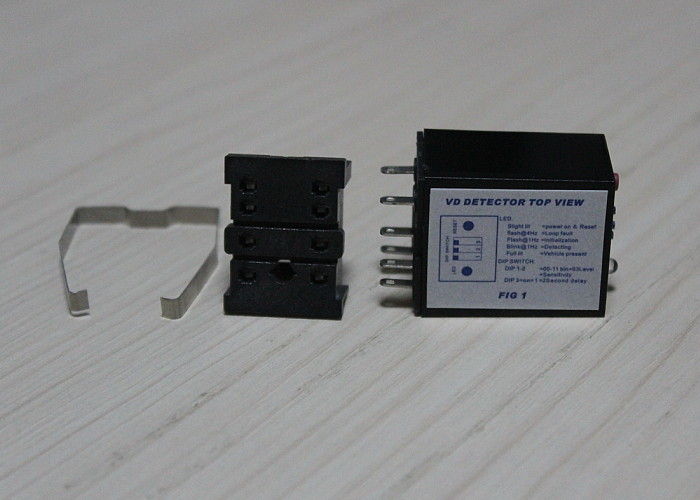

Micro Inductive Loop Vehicle Detector Access Control Board Induction Loop Detector

: Large Image : Micro Inductive Loop Vehicle Detector Access Control Board Induction Loop Detector

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	ISO 9001:2008,CE,Rohs
Model Number:	VD-108B-1

Payment & Shipping Terms:

Minimum Order Quantity:	50 nos
Price:	USD0~30 per pcs
Packaging Details:	78x40x108 mm (L x W x H)
Delivery Time:	2~3 working days
Payment Terms:	T/T
Supply Ability:	10000pcs per month

Detailed Product Description

Material:	ABS	Color:	Black
Reaction Time:	10ms	Sensitivity:	Adjustable
Dimension:	272137 Mm	Gross Weight:	10g

Micro Inductive Loop Vehicle Detector Access Control Board Induction Loop Detector

Description:

VD-108B-1 inductive loop detectors are used wherever vehicles have to be detected. Like

monitoring and safe guarding access ways to counting vehicles. The output signal can be used

for controlling door and gate drive mechanisms, operating barriers, controlling traffic light

systems in car parks or activating card dispensers in car parks.

Application:

Car Locating System

Parking Management system

Parking Guidance System

Access Control System

Product Features:

Micro Inductive Loop Vehicle Detector Access Control Board Induction Loop Detector High temperature stability, used in kinds of environment

Micro Inductive Loop Vehicle Detector Access Control Board Induction Loop Detector Environment drifting compensate automatically

Micro Inductive Loop Vehicle Detector Access Control Board Induction Loop Detector Multilevel lightning protection

Micro Inductive Loop Vehicle Detector Access Control Board Induction Loop Detector With function of sensing loop malfunction automatically (disconnection or cutting-out)

Micro Inductive Loop Vehicle Detector Access Control Board Induction Loop Detector Cooperate with barrier gate to realize vehicle anti-hit and automatic close function

Specifications:

Supply Voltage	DC 7V-12V 200mA
Frequency range	29 KHz-90 KHz
Loop inductance	80uH-300 uH
Communication	TTL
Power supply	DC 7-12v
Temperature/Humidity	Operation: -20-65°C/0-90%RH(Non-condensing) Storage: -40--85°C/0-90%RH(Non-condensing)
Dimension	272137mm
Weight	10g
