Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Reaction Time: | 100ms |
|---|---|---|---|
| Frequency Range:: | 20 KHz To 170 KHz | Dimension: | 78x40x108 Mm |
| Gross Weight: | 340g | Sensitivity: | 4 Grade |

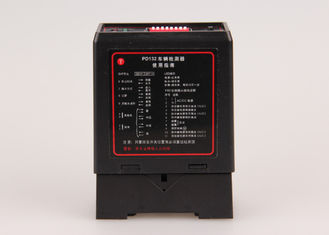

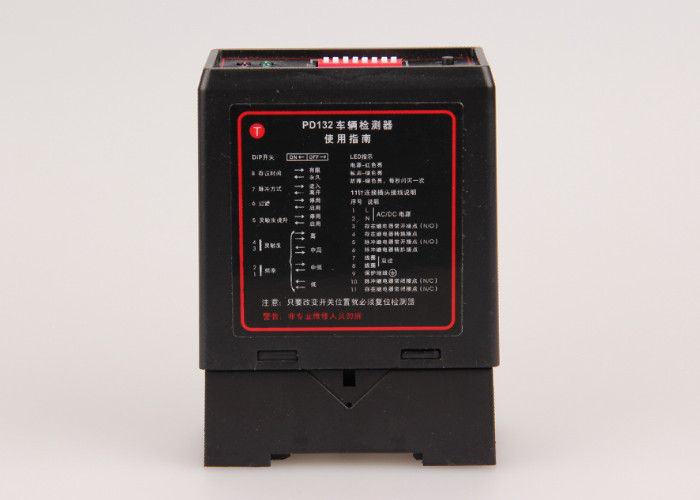

Car Parking Vehicle Loop Detector / Inductive Loop Sensor With High Sensitivity
Features:
1. Adapt to various bad environment;
2. Lightning-proof design
3. High temperature stability
4. Adjustable speed of detection and frequent of initialization
5. Red and white optional
6. Three kinds of relay output optional
Applications:
1. traffic light
2. vehicle monitor
3. Highway toll system
4. Parking lots toll system
Technical parameters:
1. single channel
2. Operating temp: -30C~ +75C
3. Storage temp: -40C~ +85C
4. Relative humidity: ≤95%
5. Shell: PC + ABS engineering plastics
6. Installation: DIN rail
7. Dimensions: 78x40x108 mm (L×W×H)
8. Net Weight: 340g
9. Operating voltages:AC220V±10%
10. Power consumption: 5W
11. Relay output: DC24V /3A
13. Frequency range: 20kHz 170kHz 4 grades adjustable
14. Reaction time: 100 ms
15. Output Relay:output
16. Connection: 11-pin socket
17. Sensitivity: 4 grades adjustable
18. Loop inductance: Ideal 100µH300µH(include connecting wiring); Max 50µH1000µH
(include connecting wiring)
19. Loop conn. Wiring: Max 100m, twisted at least 20 times per meter, total resistance <10 Ohm
20. Automatic calibration time:2s~ 5s
