Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Color: | Black |
|---|---|---|---|
| Reaction Time: | 10ms | Sensitivity: | Adjustable |
| Dimension: | 27*21*37 Mm | Gross Weight: | 10g |

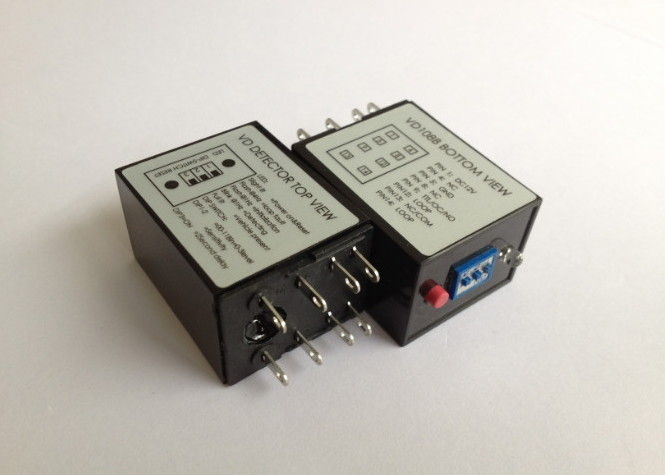

Professional Metal Single Induction Loop Detector Traffic Light Sensors
Description:
VD108B Loop detectors are used wherever vehicles have to be detected. Like monitoring and safe
guarding access ways to counting vehicles. The output signal can be used for controlling door
and gate drive mechanisms, operating barriers, controlling traffic light systems in car parks or
activating card dispensers in car parks
Application:
Parking Guidance System
Car Locating System
Parking Management system
Tragically
Product Features:
High temperature stability, used in kinds of environment
Environment drifting compensate automatically
Multilevel lightning protection
With function of sensing loop malfunction automatically (disconnection or cutting-out)
Cooperate with barrier gate to realize vehicle anti-hit and automatic close function
Specifications:
|
Supply Voltage |
DC 7V-12V 200mA |
|
Frequency range |
29 KHz-90 KHz |
|
Loop inductance |
80uH-300 uH |
|
Communication |
TTL |
|
Power supply |
DC 7-12v |
|
Temperature/Humidity |
Operation: -20-65°C/0-90%RH(Non-condensing) Storage: -40--85°C/0-90%RH(Non-condensing) |
|
Dimension |
27*21*37mm |
|
Weight |
10g |
