ABS Traffic Loop Detectors Traffic Light Sensors For Boom Barrier Gate

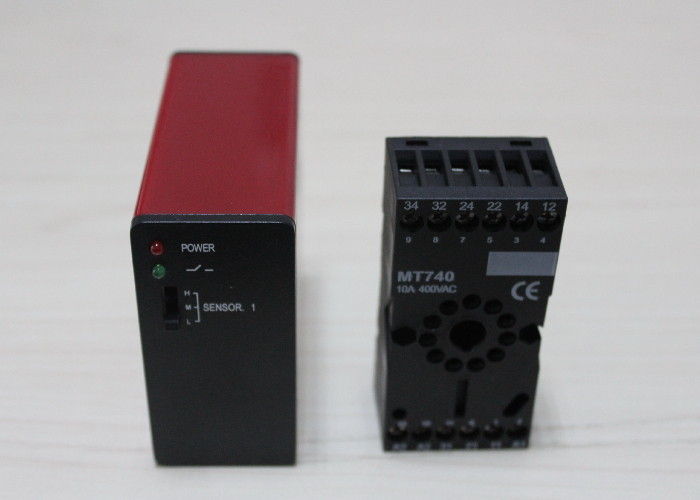

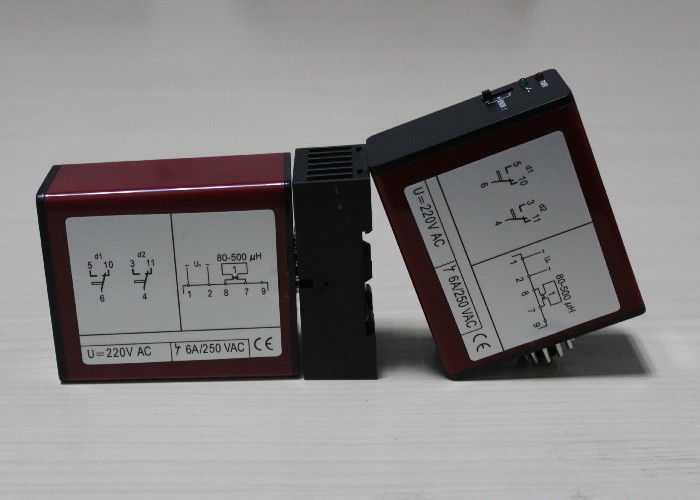

: Large Image : ABS Traffic Loop Detectors Traffic Light Sensors For Boom Barrier Gate

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	ISO 9001:2008,CE,Rohs
Model Number:	IVD-110-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	USD0~30 per pcs
Packaging Details:	78x40x108 mm (L x W x H)
Delivery Time:	2~3 working days
Payment Terms:	T/T
Supply Ability:	10000pcs per month

Detailed Product Description

Material:	ABS	Color:	Black
Connection::	11 Pin Socket	Frequency Range::	20 KHz To 170 KHz
Dimension:	78x40x108 Mm	Gross Weight:	340g
Sensitivity:	3 Grade	Power Consumption:	5W

ABS Traffic Loop Detectors Traffic Light Sensors For Boom Barrier Gate

Description:

IVD-110-2 vehicle loop detector is used for wherever vehicles have to detected.
For example for monitoring and safe-guarding accessways or for counting vehicles.
The output singnal can be used for controlling door and barrier gate drive mechanisms, operation barriers, controlling traffic light system or activaticing card dispensers in parking management system.

Feature:

User can choose working frequency according to real need
High temperature stability, used in kinds of environment
Enviorment drifting compensate automatically
With adjustable mulltievel sensitivity

Small size take up little space
With two relay output

Application:

Parking Lot system
Road vehicles toll system
Traffic Light Control System

Specifications:

Model	IVD-110-2
Power Supply	AC 220V±10%/50Hz-60 Hz, AC110V±10%/ 50Hz-60 Hz, DC12V±5%
Power Consumption	3W (peak)
Loop Inductance	80—500μH
Frequency	50 KHz—250 KHz
Sensitivity	Three-level adjustable
Output	two relay output
Length of Lead-in Cable	maximum 5 meters, each meter should be stranded at least 20 times
Ambient Compensation	automatic drift compensation
Operating Temperature	-5°C—70°C/ 0—90%RH(No Condense)
Storage Temperature	-20°C—80°C/ 0—90%RH(No Condense)
Weight	Approx. 300g
