Industrial Auto RFID Card Dispenser Machine Ticket Machine With IC / Rfid Reader

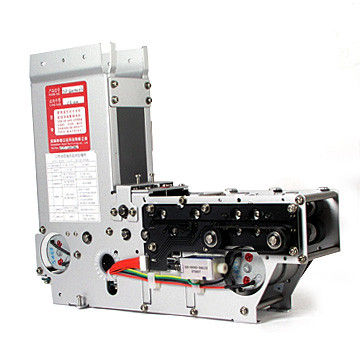

Large Image : Industrial Auto RFID Card Dispenser Machine Ticket Machine With IC / Rfid Reader

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	ISO 9001:2008,CE,SGS
Model Number:	ICD-300

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	2-5 working days
Payment Terms:	T/T
Supply Ability:	5000 unit per month

Detailed Product Description

Model:	ICD-300	Card Material:	Paper/PVC/mylar Cards
Dimension:	23078228mm	Card Thickness:	0.4-1.0mm
Communication:	RS-232 /USB	Weight:	Approx. 4.5kg
Power Supply:	DC 24V+/-5%	Application:	Car Parking System

Industrial Auto RFID Card Dispenser Machine Ticket Machine With IC / Rfid Reader

Description:

RFID cards dispensing machine for ticket payment systems
Automatic RFID Smart Card collector for TCP/IP Parking ICD-300
Parking Access Control Automatic Smart Card Collector for parking lot access ICD-300
TTL and RS323 interface motor card dispenser ticket machine parking system
Card dispenser for parking and high-way toll station
Auto card dispenser DC24V RFID card reader/writer
New style hot sale automatic kiosk rfid ic card dispenser

Application:
Automatic card vending machine
Ticket vending system
Parking Management system
Card initialization Batch
Highway card issuing system

Product Features:

• RF card read/write
• Equip with infrared scan for barcode
• Card auto-retract
• Preserve card quantity detection interface for error card bin
• Support multi-unit communication for 16 units
• RoHs compliant

Main characteristics

Industrial design, adjust to high temperature and other bad environments;
Pre-dispense function accelerate dispensing speed;
Automatic buzzer alarm when no cards, fewer cards or failure.
Provide both RS232 and I/O voltage control interface;
Slide card stacker with a capacity of 40pc;
Adjustable of card Holder with a capacity of 120pc each;
Automatic withdrawal to prevent card lost
Slide design to make installation and disassembling easier;
Molded production to ensure high consistency of precision and quality.
Automatic buzzer alarm when errors occur, automatic reset after 100 seconds alarm;
Connectable with the vehicle detector to achieve card issuing and “one car, one card”;
Simulated manpower friction card issuers ,better adaptability to various deformed cards;
Watchdog of hardware and embedded operating system to ensure properly running;
Capacity of card stacker is more than 40pcs, automatic buzzer alarm when the withdrawing stacker is full;

Specifications:

Model	ICD-300
Features	Plastic frame module, IC/RFID card read/write
	Dispense/capture/accept card
	Removable stacker options
	Very compact & robust
Application	Card parking system
	Card issuing machine
	Card vending machine
Motor	2pcs
Card standard	IC Card: ISO7816 RFID Card: ISO14443 Type A/B
Card Thickness	0.4-1.0mm
Storage Capability	1000pcs(0.76mm standard card)
Communication	RS-232 /USB
Power supply	DC 24V+/-5%
Temperature/Humidity	Operation: 0-50°C/0-90%RH(Non-condensing) Storage: -10-75°C/0-90%RH(Non-condensing)
Dimension	23078228mm
Weight	Approx. 4.5kg
