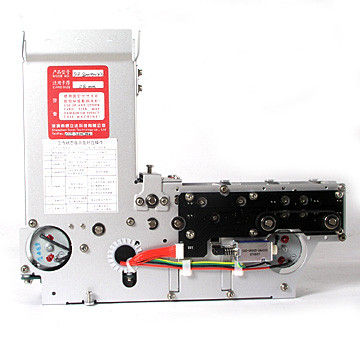

Intelligent Security RFID Card Dispenser For Auto Ticket Vending Machine

Application:

Intelligent card parking system

Auto ticket vending machine

High-way card dispensing system

Specification

Collect and dispense card in one machine

Security recovery function

Industrial design, compact structure, simple and reliable control interface

Good resistance to abrasion and corrosion fit for high and low temperature environments.

Simulation manpower friction card issuers ,better adaptability to various deformed cards

Watchdog of hardware and micro-embedded real-time operating system to ensure reliable operation

Pre-dispense function accelerate dispensing speed

Direct connectivity to inductor

Automatic buzzer alarm when fewer cards, no cards or failure

Provide RS232 and I / O voltage two control interface

Card recycling capacity is 40pcs, automatic buzzer alarm when cards warehouse is full

Automatic reset: after the wrong alarm 30 or 100 seconds

Security recoveries: prevent cards lost

Adjustable capacity of Card warehouse

Card thickness: 0.2mm-1.5mm (adjustable)  (Ex-work setting: 0.8mm)

Motherboard slip design makes the installation and removal simple, convenient and fast

Die-wide production ensure the products’ quality and consistency

Technical data:

1. Operating Voltage: 24VDC (MAX current 2A, static current 0.1A)
2. Operating temperature: -20℃ to 80℃
3. Operating relative humidity: 30%-90%
4.  Used condition: installed in bin
5. Card Material: all kinds of paper cards and PVC / mylar cards
6.   N. W: 2.0Kg ( Include cards pressure block)
7.  Card dispensing speed: about 0.5s
8.  Card capacity: 150pcs (According to card thickness: 0.8mm/pcs)
9.  Adding a lengthen box can add the card capacity

Applicative Card Jaws

Mode K6:installed on control plate , With waterproof and anti-insert functions

 Mode K3 :installed on control plate

Mode K5 :installed on card dispenser
