| Model: | ICD-1500RF | Card Material: | All Kinds Of Paper Cards And PVC / Mylar Cards |
|---|---|---|---|
| Card Demension: | L( 76mm～86mm)* W(53mm-56mm)*H( 0.2mm-2.0mm) | Interface: | TTL, RS232, RS485 Level Control |
| N. W: | 2.5Kg | Operating Temperature: | -15℃～70℃ |
| Operating Relative Humidity: | 20%-90% | Rating Voltage: | 24VDC (MAX Current 2A, Static Current 0.1A) |

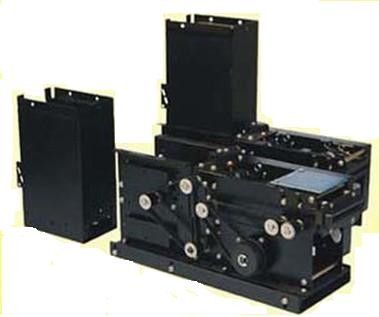

Compact Gift RFID Card Dispenser WITH RS232 / RS485 / TTL Interface
Application
Toll system of car parks
Access control system
Smart parking lot
Fetures
Waterproof, dustproof and physical protection
card stack holder(the card containers)is removable
Compact size
Postposition of the card reclaiming bin
Unique way of reclaiming
Slit is easy to adjust
Optimized the PCB design
Feature setting is flexible
Parameter:
|
Item |
Parameter |
|
Model |
TYCD1500RT-II |
|
Voltage |
DC 24V±10% |
|
Card Size |
55mm*86mm*0.2mm-2.5mm |
|
Transmission |
Over 500,000 passes |
|
Interface |
RT |
|
Dispensing Rate |
1p/s |
|
Operating Condition |
Temperature:0°C-55°C, Humidity:0-90%RH(Non-condensing) |
|
Storage Condition |
Temperature:-20°C-80°C, Humidity:0-95%RH(Non-condensing) |
|
Weight |
Approx2.5kg
|
Technical data
Rating Voltage: 24VDC (MAX current 2A, static current 0.1A)
Operating temperature: -15℃～70℃
Operating relative humidity: 20%-90%
Card Material: all kinds of paper cards and PVC / Mylar cards
Card demension:L( 76mm～86mm)* W(53mm-56mm)*H( 0.2mm-2.0mm)
Interface :TTL, RS232, RS485 level control
Used condition: installed in bin
N. W: 2.5Kg
Card Dispense Speed: about 0.5s
Applicative Card Jaws
Mode K2 :installed on card dispenser
Mode K4 :installed on poll box
