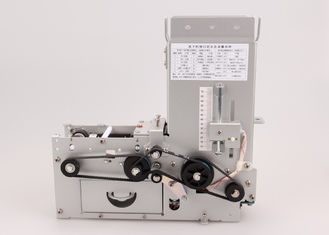

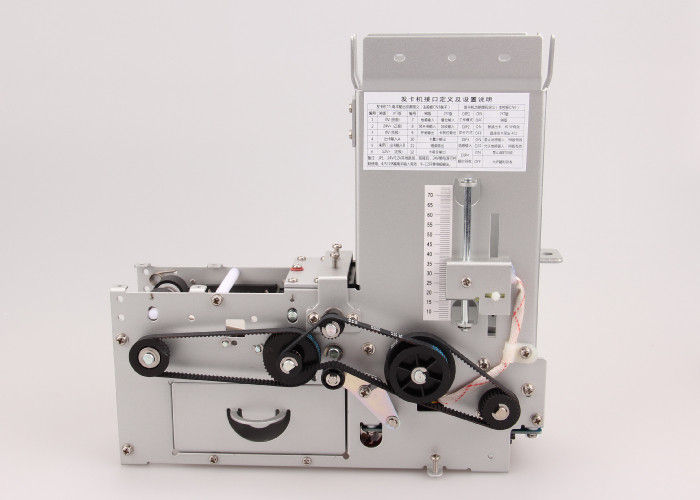

RFID / IC Card Read Write Magnetic Card Dispenser For Vending Machine

RFID / IC Card Read Write Magnetic Card Dispenser For Vending Machine

ICD-200 card dispenser can dispense IC/RF cards with IC/RF card reader/writer, very popular and widely applied in Kiosk machines, Vending machines, car parking system, subway syatem etc. It is a compact and cost-effective item.

Application:

Vending Kiosk

Parking Management system

Card initialization Batch

Highway card issuing system

Automatic card vending machine, ticket vending system

Main characteristics

1) Industrial design, adjust to high temperature and other bad environments;

2) Simulated manpower friction card issuers ,better adaptability to various deformed cards;

3) Watchdog of hardware and embedded operating system to ensure properly running;

4) Pre-dispense function accelerate dispensing speed;

5) Connectable with the vehicle detector to achieve card issuing and “one car, one card”;

6) Automatic buzzer alarm when no cards, fewer cards or failure.

7) Provide both RS232 and I/O voltage control interface;

8) Automatic buzzer alarm when errors occur, automatic reset after 100 seconds alarm;

9) Molded production to ensure high consistency of precision and quality

10) Slide card stacker with a capacity of 40pc;

11) Adjustable of card Holder with a capacity of 120pc each;

12) Automatic withdrawal to prevent card lost

13) Slide design to make installation and disassembling easier;

14) Capacity of card stacker is more than 40pcs, automatic buzzer alarm when the withdrawing stacker is full

Specifications:
