Electronic Ticket Vending IC / RF Card Dispenser Machine With Rfid Reader

Electronic Ticket Vending IC / RF Card Dispenser Machine With Rfid Reader

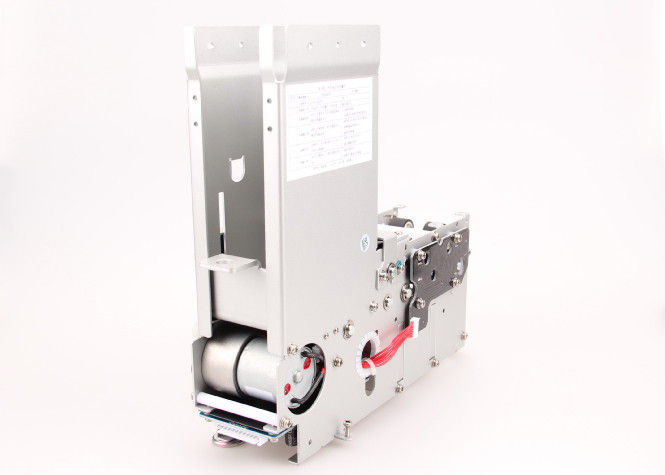

ICD-200 card dispenser can dispense IC/RF cards with IC/RF card reader/writer, very popular and widely applied in Kiosk machines, Vending machines, car parking system, subway syatem etc. It is a compact and cost-effective item.

Application:

Automatic card vending machine, ticket vending system

Parking Management system

Card initialization Batch

Highway card issuing system

Main characteristics

1) Industrial design, adjust to high temperature and other bad environments;

2) Simulated manpower friction card issuers ,better adaptability to various deformed cards;

3) Watchdog of hardware and embedded operating system to ensure properly running;

4) Pre-dispense function accelerate dispensing speed;

5) Connectable with the vehicle detector to achieve card issuing and “one car, one card”;

6) Automatic buzzer alarm when no cards, fewer cards or failure.

7) Provide both RS232 and I/O voltage control interface;

8) Automatic buzzer alarm when errors occur, automatic reset after 100 seconds alarm;

9) Capacity of card stacker is more than 40pcs, automatic buzzer alarm when the withdrawing stacker is full;

10) Slide card stacker with a capacity of 40pc;

11) Adjustable of card Holder with a capacity of 120pc each;

12) Automatic withdrawal to prevent card lost

13)S lide design to make installation and disassembling easier;

14) Molded production to ensure high consistency of precision and quality.

Specifications:
