| Model: | ICR-1000 Card Reader | Protocol: | ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C) |
|---|---|---|---|
| Work Frequency: | Standard ISM 865-868MHz, 902~928MHz(other Frequency Can Be Customized) | Read Range: | 0-15m |
| Write Range: | 0-8m | Interface: | WIFI, RS232, RS485, Wiegand 26/34 |
| Dimension: | 445*445*65mm | Power Output: | 0-30dBm(adjustable) |

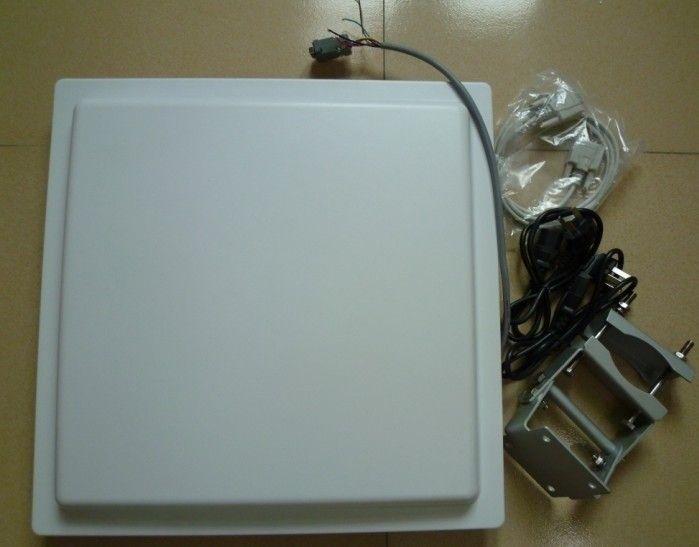

Long Distance RS232 WIFI UHF RFID Smart Chip Card Reader For Entrance
Product Features:
Logistics and warehouse management: goods flow, warehouse management, and flow management for mail, parcels, luggage
Supply chain application: supply chain process application
Commodity anti-counterfeiting: commodity anti-counterfeiting via label’s write-protect function
Other application: club management, library management, time attendance management, repast management, pool management
Specification:
|
Model |
ICR-1000 card reader |
|
Protocol |
ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C) |
|
Work Frequency |
Standard ISM 865-868MHz, 902~928MHz(other frequency can be customized) |
|
Frequency Hopping |
FHSS |
|
Power Output |
0-30dBm(adjustable) |
|
Antenna |
Built-in 12dBi linear polarization antenna |
|
Interface |
WIFI, RS232, RS485, Wiegand 26/34 |
|
Read Mode |
Answer, Active, Trigger |
|
Read Range |
0-15m |
|
Write Range |
0-8m |
|
Reading Clue |
Buzzer |
|
Power |
DC+9V (Power Adapter) |
|
Dimension |
445*445*65mm |
|
N.W |
2.6Kg |
|
G.W |
5.0Kg |
|
Operation Temp |
-10°C ~ +60°C |
|
Storage Temp |
-25°C ~ +80°C |
|
Additional services |
Provide Demonstration software and SDK for further development |
* Effective distance depends on antenna, tag and environment.
INTERFACE
|
ITEM |
COMMENT |
|
Red |
+9V |
|
Black |
GND |
|
Yellow |
Wiegand DATA0 |
|
Blue |
Wiegand DATA1 |
|
Purple |
RS485 R+ |
|
Orange |
RS485 R- |
|
Brown |
GND |
|
White |
RS232 RXD |
|
Green |
RS232 TXD |
|
Grey |
Trigger input(TTL level) |
* Effective distance depends on antenna, tag and environment.
Applications:
♦ Logistics System
♦ Parking system, Vehicle Management,e-toll
♦ Access control
♦ Digital Warehouse Management
