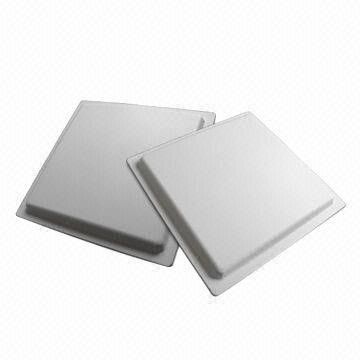

Contactless 15m Integrated Rfid UHF Long Range Card Reader Access Control

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	1pc/carton standard package
Delivery Time:	1 days after get payment if less 100 unit
Payment Terms:	T/T
Supply Ability:	1,0000 set/month

Detailed Product Description

Contactless 15m Integrated Rfid UHF Long Range Card Reader Access Control

Applications:

Specification:

Model	ICR-1000 card reader
Protocol	ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)
Work Frequency	Standard ISM 865-868MHz, 902~928MHz(other frequency can be customized)
Frequency Hopping	FHSS
Power Output	0-30dBm(adjustable)
Antenna	Built-in 12dBi linear polarization antenna
Interface	WIFI, RS232, RS485, Wiegand 26/34
Read Mode	Answer, Active, Trigger
Read Range	0-15m
Write Range	0-8m
Reading Clue	Buzzer
Power	DC+9V (Power Adapter)
Dimension	44544565mm
N.W	2.6Kg
G.W	5.0Kg
Operation Temp	-10°C ~ +60°C
Storage Temp	-25°C ~ +80°C
Additional services	Provide Demonstration software and SDK for further development

* Effective distance depends on antenna, tag and environment.
