Office Building Door Tripod Turnstile Gate With Stainless Steel Casing Gate

China Office Building Door Tripod Turnstile Gate With Stainless Steel Casing Gate supplier

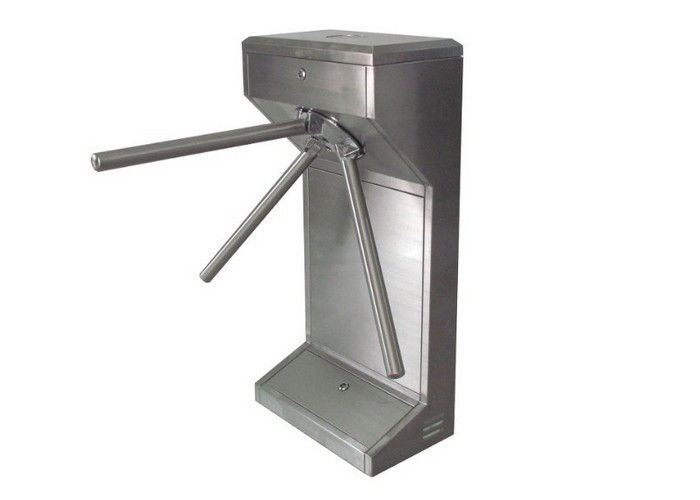

Large Image :  Office Building Door Tripod Turnstile Gate With Stainless Steel Casing Gate

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Integer
Certification: ISO 9001:2008,CE,Rohs
Model Number: ITG-232

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: USD0~3000 per pcs
Packaging Details: 1235×600×1000mm
Delivery Time: 2~3 working days
Payment Terms: T/T
Supply Ability: 10000pcs per month
Detailed Product Description
Material: 304 Stainless Steel Input Voltage: AC220±10%
Frequency: 50/60Hz Dimension: 420×380×1000mm
Net Weight: 40KG Close And Open Time: 0.6s
Communication: RS485

Office Building Door Tripod Turnstile Gate With Stainless Steel Casing Gate



ITG-232 tripod turnstile gate consists of casing, magnetic force turn plate, reader module, main controller module, direction guide, limit switch etc., can be used for entrance control, applications like apartment, factory, museum, station and ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent tripod turnstile management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc. The equipment opens half-automatically, Mifare-1, IC, ID and Bluetooth are available to be used with the tripod turnstile.




1. Designed reasonable and reliable movement noise small, the internal hydraulic device automatically

Buffer, run a smooth, long service life.

2. With the power drop-shot function, can also carry out additional remote

3. Prompted with the direction of LED lights.

4. Can be set “with memory” or “not to bring memory” function

(when set to “bring Memory”, the brush can be used in a scenic spot ticket too many people groups


5. With automatic reset function, namely, access to lock permissions, set at the time there is no interlock,

three roller gates automatic cancellation of this authority back to the lock set state.

6. Waterproof, sunscreen, cold and high temperature.

7. Installation with personalized interface, compatible with IC, ID cards and other smart cards.

8. A unified, standard external electrical interface read and writes with a variety of equipment from by the

articulated and easy system integration.

9. Be integrated with other type’s channels with the use of product.

10. Can be extended to automatic identification system; achieve access control, attendance fees, and

more functions.





Box Materials: 304 Stainless steel

Internal Structure: Steel frame structure

Job movement power: AC220V±10%/DC24±10%

Engine failure rate: 300 milliotic times without failure

Par swap devices: automatic power off rod/control rod drop

Gate pole shift: one-way or one-way

Gate pole job driving force: 3KG

Pole gate drive: Digital mode Trip switches: standard

Lighting Tips: green movement, the alarm curfew

Power indicator light job: DC12V±5%

Working environment: indoor and outdoor

Ambient temperature:-15 degrees ~ 60 degrees

Relative humidity: 5%-90%

Reader installation spaces:2

Control panel installation spaces:2

Control signal: relay signal input

Movement speed: 30/min
