Product Details:
Payment & Shipping Terms:
|
| Model: | ISG-106 | Input Voltage: | AC220±10% |
|---|---|---|---|
| Frequency: | 50/60Hz | Dimension: | 420*330*980mm |
| Net Weight: | 40KG | Close And Open Time: | 0.6s |
| Communication: | RS485 | Material: | 304 Stainless Steel |

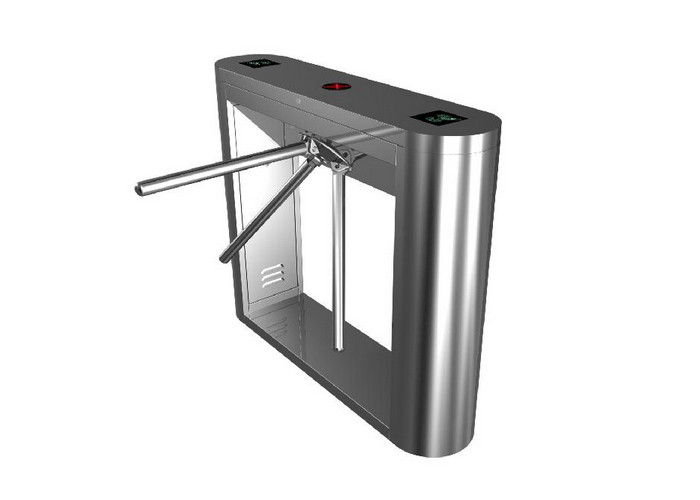

Door Access Equipment Tripod Turnstile Security Turnstile Gate For Entrance Control
Tripod turnstiles gates offer a compact, cost-effective, fast operating, easy to use, reliable entrance solution for internal or external use in areas where there is a large and constant flow of people.
The advantages of using a Turnstile compared to a conventional Gate include the better utilization of manpower, increased reliability and improved security. This mechanism allows a single employee to enter into the premises only after verification through the Access Control Module that is integrated onto the Turnstile.
ITG-106 is easy to install, and will provide years of trouble-free service. Available in three models to suit any application, they are attractive, durable and provide the access control features you need at a price that makes sense for any situation.
Specification:
|
Power Supply |
AC220V±10V ,50Hz / AC110V±10V ,60Hz |
|
Power Consumption |
100W |
|
Temperature |
-15 to 60 degrees |
|
Humidity |
<95%, without concretion |
|
Passage Width |
600mm |
|
Passing Speed |
30 persons/min (normal open), 20 persons/min (normal close) |
|
Arm Open/Close Time |
2s |
|
Input Interface |
+12V electrical signal or impulse signal with width more than 100ms, drive current >10mA |
|
Communication Interface |
RS485 (Distance: <=1200m) |
|
Working Environment |
Indoors or outdoors with shed |
Functions:
1.Auto-reposition function: After card read, passengers don‘t pass within regulated time period, turnstile will be locked automatically
2.Bi-direction passing or uni-direction
3.When power off, arm will be dropped automatically
4.Self-lock function: arm will be locked automatically after passenger passing
5.LED passing arrow can show direction to indicate passenger to pass
6.Standard interfaces are convenient for connection with different readers which can send relay signal
7.RS485 interfaces can connect turnstile with computer directly
8.Stable running with little noise
Sevice:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We offer OEM services. Can print your own logo on the products , can customize the retail box packing and other things.
3. Customers can come to our factory and learn how to install the flap barrier, if necessary, we can offer door-to-door service.
4. Warranty:1 year
