Electric Security Tripod Turnstile Gate Systems , Turnstile Entry Systems

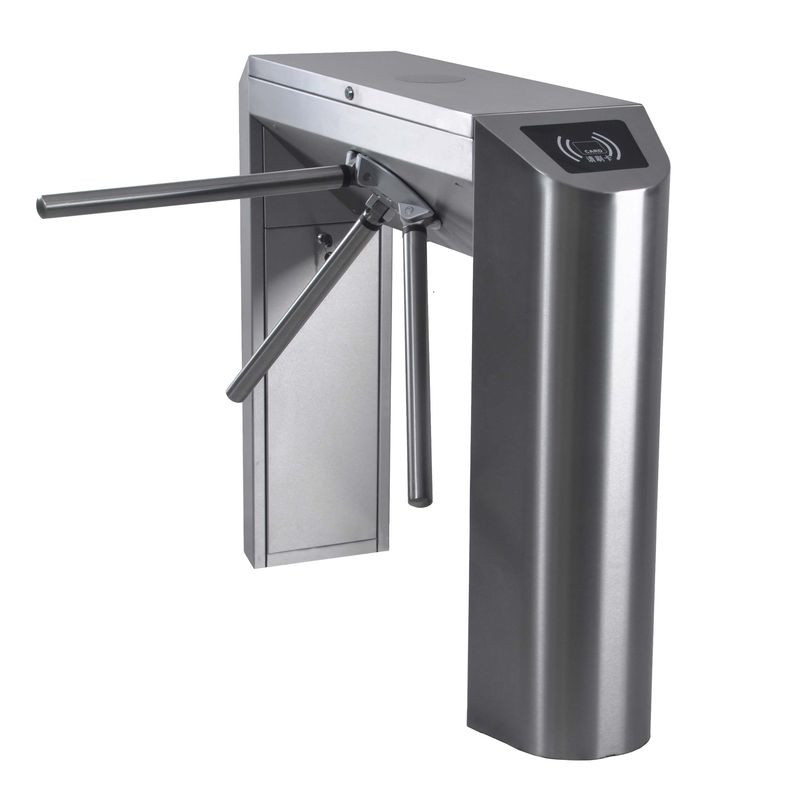

Large Image : Electric Security Tripod Turnstile Gate Systems , Turnstile Entry Systems

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	ISO 9001:2008,CE,Rohs
Model Number:	ISG-105

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	USD0~3000 per pcs
Packaging Details:	1235×600×1000mm
Delivery Time:	2~3 working days
Payment Terms:	T/T
Supply Ability:	10000pcs per month

Detailed Product Description

Model:	ISG-203	Input Voltage:	AC220±10%
Frequency:	50/60Hz	Dimension:	420330980mm
Net Weight:	40KG	Close And Open Time:	0.6s
Communication:	RS485	Material:	304 Stainless Steel

Electric Security Tripod Turnstile Gate Systems , Turnstile Entry Systems

Access control and pedestrian traffic metering doesn’t have to be costly.ISG-105 tripod turnstile gate, are affordable, easy to install, and will provide years of trouble-free service. Available in three models to suit any application, they are attractive, durable, and provide the access control features you need at a price that makes sense for any application.

Features

Controlling gate traffic direction through an access control device: locked or free exit
Includes reader interface and power supply for low voltage 24 VDC operation
Supplied fail-lock or fail-safe
Self-centering mechanism cushioned by hydraulic shock absorber
Mechanism housing and pedestal fabricated from 3/l6" carbon steel
Top cover, safety panel and tripod arms constructed of polished stainless steel
Easy to install and maintain
Turnstile Cost: Call for pricing information

Technical

Overall dimension	420×380×1000,1235×280×1000,1235×280×1000,420×380×1050
Weight	45kg
Tripod arm length	490mm
Housing material	SUS(304#),thickness is no less than 1.5mm
Working voltage	AC220V±10%,50HZ±10%
Drive motor	DC brushed motors(24V)
Passage width	≤600mm
MCBF	3,000,000 cycle
Communication interface	TCP/IP
Passing speed	40~50 people/min
Readable cards	IC/ID card
Operating time	1s
Working environment	Indoor; Outdoor (with shelter)
Working temperature	-40°C~60°C
Relative humility	≤95%, no-condensation
Operating places	Government agency,Residential area, School, Enterprise, Factory, etc
