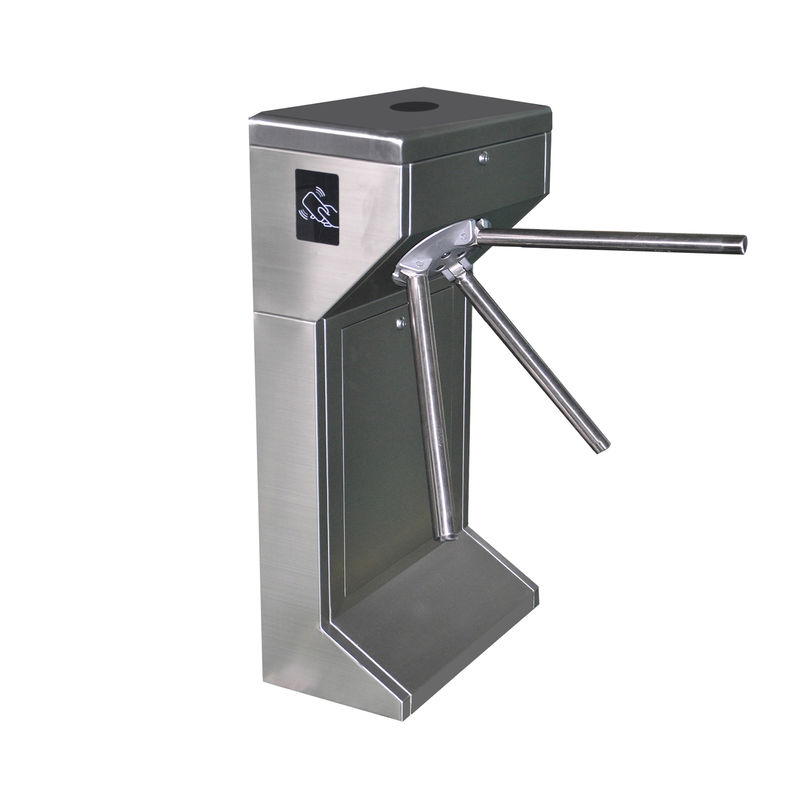

Full Automatic Tripod Pedestrian Turnstile Gate Door Access System

Large Image : Full Automatic Tripod Pedestrian Turnstile Gate Door Access System

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	ISO 9001:2008,CE,Rohs
Model Number:	ITG-141

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	USD0~3000 per pcs
Packaging Details:	1235×600×1000mm
Delivery Time:	2~3 working days
Payment Terms:	T/T
Supply Ability:	10000pcs per month

Detailed Product Description

Model:	ITG-141	Input Voltage:	AC220±10%
Frequency:	50/60Hz	Dimension:	420×380×100
Net Weight:	40KG	Close And Open Time:	0.6s
Communication:	RS485	Material:	304 Stainless Steel

Full Automatic Tripod Pedestrian Turnstile Gate Door Access System

Access control and pedestrian traffic metering doesn’t have to be costly.ISG-105 tripod turnstile gate, are affordable, easy to install, and will provide years of trouble-free service. Available in three models to suit any application, they are attractive, durable, and provide the access control features you need at a price that makes sense for any application.

Features

Controlling gate traffic direction through an access control device: locked or free exit
Includes reader interface and power supply for low voltage 24 VDC operation
Supplied fail-lock or fail-safe
Self-centering mechanism cushioned by hydraulic shock absorber
Mechanism housing and pedestal fabricated from 3/l6" carbon steel
Top cover, safety panel and tripod arms constructed of polished stainless steel
Easy to install and maintain
Turnstile Cost: Call for pricing information

Technical

1) Power supply: AC220V±10%, 50Hz
2) Working voltage of motor: DC 12V
3) Rated power: 50W
4) Working temperature -15 ℃+55℃
5) Rotating speed of the motor: 850round/min
6) Dimension of the outline: 420×330×980mm
7) Length of the boom: 520mm
8) Largest endurance of boom: 80kg
9) Driving force of boom: 80kg
10) Working environment: outdoor and indoor.
11) Transit speed: 25~32person/minute
12) Input socket:12V electrical level signal＞100ms 12V impulse signal driving
current＞10mA
13) Communication socket: StandardRS232
