Automatic Traffic Parking Lot Barrier Gates Motor AC110v AC220v

Large Image : Automatic Traffic Parking Lot Barrier Gates Motor AC110v AC220v

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	CE, ISO, SGS
Model Number:	IBG-108C

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD300~400/unit
Packaging Details:	Carton(1 unit): 1020375467mm
Delivery Time:	5~15
Payment Terms:	T/T
Supply Ability:	3000units per month

Detailed Product Description

Model:	IBG-101C	Working Voltage:	AC220v, AC110v
Rated Power:	80w	Net Weight:	60kgs
Speed:	1.5S ,3S,6S	Max Boom Length:	3~6 Meters

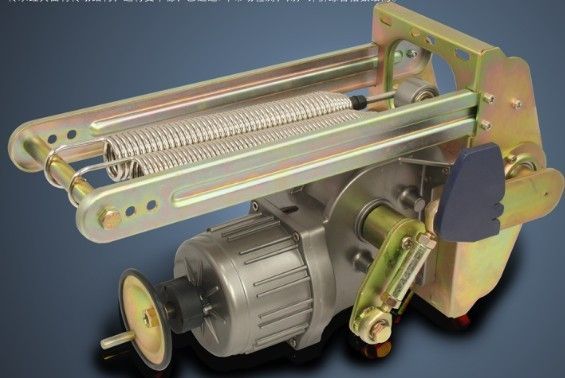

Automatic Traffic Parking Lot Barrier Gates Motor AC110v AC220v

Quick Detail:

Name: Barrier Gate gate core

Net Weight: 30KG

Application : Highway toll

Feature: Manual release

Rated Power: 80W

Certificate:CE, ISO, SGS

Speed:3/6 second

Voltage: AC220V, AC110V

Functions & Features:

Manual release device to operate the barrier when power failure

Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

Motor cooling fan to avoid the over-heating possibility

Automatic reversing when the barrier boom meets the obstruction

Auto closing realization through menu setting on the control panel

The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers,

manual switch (wire control), and traffic light

RS485 Communication Module is compatible

Applications:

IBG-108 Barrier Gate uses the first generation motor. It is stable and has long service life performance,

running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted,

so that the barrier can work with parking system very well, and can be used in door and outdoor.

Specifications:

Model	IBG-108
Working Temperature	-40℃～+75℃
Voltage	220V±10%, 110V±10%, 50/60HZ
Rated power	80w
Relative humidity	≤90%
Remote control distance	≥30m
Net weight	60kgs
Speed	1.5S ,3S,6S
Max boom length	3~6 meters

Competitive Advantage:

Professional: We are a leading manufacturer of automatic barrier gate in China . We have a strong
professional team with 8 years experiences.
New Product: We keep on developing new product. Our goal is to enhance our competitive capacity
constantly.
QC: we do 100% inspection before the shipment.
Promise: we are always ready to take the responsibility if any loss caused to our customer due to our
mistakes.
Credibility: We are SGS certificated Supplier. Our customers are located over 50 countries
Gratitude: We cherish the business chance you give us and return you with quality products and
good service.
Customizable: Design products according to customers’ requirements.
MOQ: 1 unit. We keep stock for regular products. our shortest lead time is just 3 days.
Price: very competitive price and good quality products
