Product Details:
Payment & Shipping Terms:
|
| Model: | IBG-405-3 | Color: | Optional |
|---|---|---|---|
| Weight: | 65kg | Power Frequency: | 50/60Hz |
| Steel Thickness: | 2.5mm | Voltage: | AC 220v, 110v |
| Material: | Cold-rolled Steel Plate | Dimension: | 1020*375*467mm |

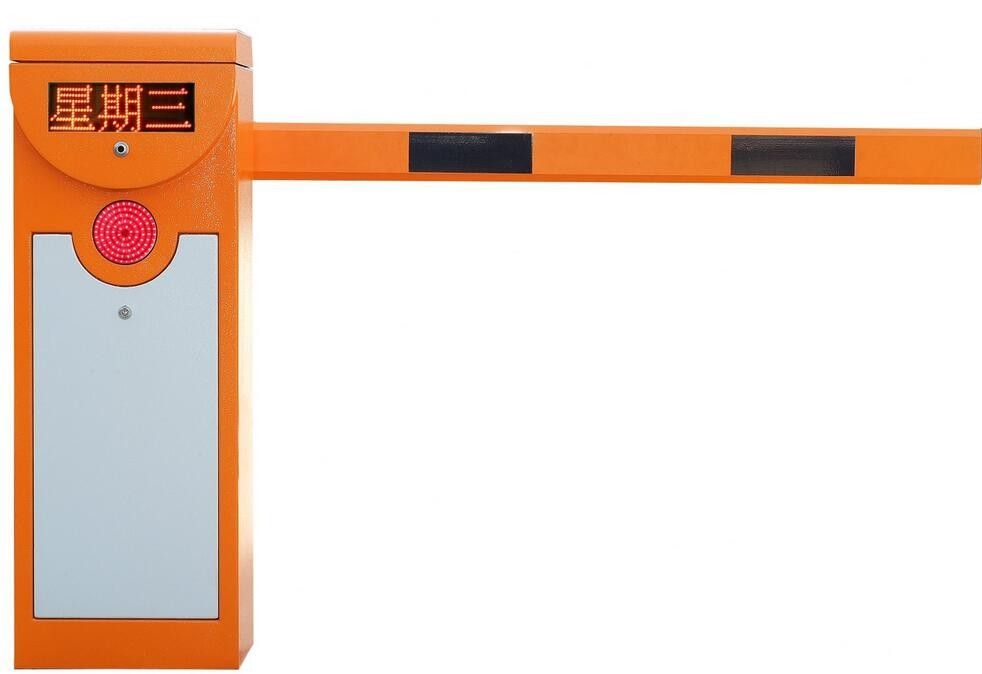

Durable Motor Parking Barrier Gate Car Park Barrier With Led Display
IBG-405-3 uses connecting-rod reduction box, which possesses the characteristics like simple construction, running smoothly, manual operation and automatically open when power off, easy installation and operation, safe and reliable, attractive appearance, etc.The machine in not only reasonable in desigh but also effective in performance.It is ideal barrier for roads and parking lots.
Specifications
1. Color available (yellow, blue, red)
2. Applications: control and management of parking lots, toll gates, goods yards, railway crossings,
highway toll station, commercial premises, and apartment block access,
3. Manual operation in case of power failure.
4. Built-in control panel, available to IC card reader.
5. heat-protection with motor cooling fan
6. Support the Infrared Photocell for anti-bumping function (optional)
7. Support the external and internal Vehicle Loop Detector (optional)
8. water proof, dust proof, anti rust proof coating, it does not fade in 3 to 5 years
9. High reliability and low maintenance
10. Quick speed and silent operation
11. Straight arm boom gate can be made based on the width design of road surface. It is clear cut
and highly visible and is ideal for freeway junctions.
12. The base of the anti-crash arm is made of soft rubber material which has a special function in
avoiding damage to vehicles and pedestrians when the gate is not functioning properly due to
human operation error or mechanical malfunctioning.
13. In case of electric failure or trouble, it can manually operate the movable barrier to return to the
position.
Technical data:
|
IBG-405-3 |
|
|
Arm Type |
Straight Arm |
|
Arm material |
aluminum alloy |
|
Arm length |
≤ 6.0m |
|
Rail up or down time |
1.8s-6s optional |
|
Motor power |
AC220/50Hz |
|
Frequency |
50~60Hz |
|
Protection class |
IP65 |
|
Operating temperature |
-45 to 80 |
|
Operating humidity |
≤ 90% non-condensing |
|
Dimensions |
345x295x1000 |
|
Material |
2.5mm cold-rolled steel plate with waterproof and rustproof coating |
|
Communication Interface |
Standard RS485 |
|
Communication Range |
800-1200m |
|
Functions |
remote control |
|
Anti-bumping function to protect cars and pedestrain |
|
|
Solid and endurable structure, strong bearing capacity |
|
|
Manual operating mode is provided |
|
|
In case of electric failure or trouble, it can manually operate the movable barrier to return to |
|
INTEGER can also provide the related products:
IC/RF ID/magnetic cards and card reader, automatic card dispenser, loop detector, card collector, tickets transport machine, micro printer, barrier gate, parking guidance system.
