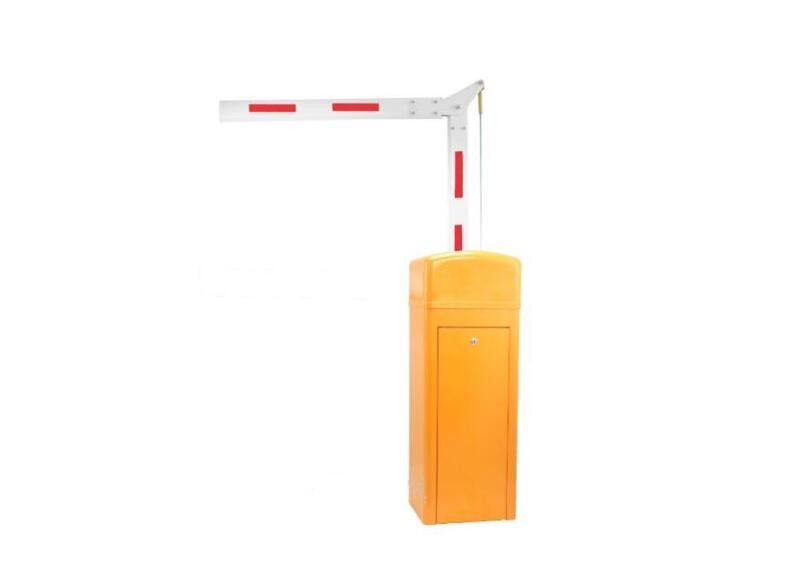

Folding Aluminum Boom Parking Barrier Gate System Underground Parking Lot Barriers

: Large Image : Folding Aluminum Boom Parking Barrier Gate System Underground Parking Lot Barriers

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	CE, ISO, SGS
Model Number:	IBG-108

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	Carton(1 unit): 1020375467mm
Delivery Time:	5~15
Payment Terms:	T/T
Supply Ability:	3000units per month

Detailed Product Description

Model:	IBG-108	Working Temperature:	-40℃～+75℃
Speed:	3s~6s	Boom Length:	3m~6m
Weight:	60kg	Voltage:	AC 220v,110v

Folding Aluminum Boom Parking Barrier Gate System Underground Parking Lot Barriers

Feature

Manually operation open and close from the boon when power failure.
Machine core with compression spring
Control system adopts intelligent microprocessor technology,user-friendly,good stability.
Aluminum alloy motor, precision and good at thermal radiating
Intelligent overheating protection system, solving the problem of heat-protection
Double safety limit switches (photoelectric limit switch/mechanical limit switch)
Auto-closing
Special balancing structure design makes the barrier boom has the feature of slow-staring, fast-running, slow stopping
Special low-speed motor with aluminum casing, one-piece gear box design,The overall apperance is nice and neat,fast dissipation and over-current pretection.
Special balancing and driving mechanism make the barrier boom runing up and down smoothly. non-constant speed operation which effectively eliminates barrier boom suddenly stopping and running while it is up/down.
The paint color and boom length can be customized.

Technical Parameters

1	Power	220V±10%, 110V±10%, 50/60HZ
2	Running Time	1.5s, 3s, 6s
3	Motor	80W
4	Operating Temperature	-40°C-60°C
5	Relative Humidity	≤95%, No condensation
6	Communication Distance	≥30m
7	Boom length	Max 6 meters
8	Cabinet Color	orange, customized color available
9	Communication Connection	RS485 Communication
10	Boom Type	straight, articulated, fence arm
11	related accessories	infrared sensors, loop detectors,traffic light, UHF readers
12	Application	vehicle access control & car parking lots
13	Cabinet	Powdered painting, stainless steel is available
14	Protection level	IP54
15	Application	Parking Lots, Toll Gates, Goods Yards, Railway Crossings, Commercial Premises, Aparment Block Access

Maintenance

1. Keep the barrier gate clean
2. Check the joints ever month in case of any loose parts.
3. Check the spring elasticity after the barrier gate running 30000 times
4. Check the easily worn-out parts (like spring, limit switch) every half year
and
renew it.
5. Remote control distance will be shortened or not work in cases like big
object
screening, battery exhausting, extreme weathers.
