Single Channel Inductive Loop Vehicle Detector Mangnetic Loop Detector

Single Channel Inductive Loop Vehicle Detector Mangnetic Loop Detector

Description:

IVD-110 connects one inductive loop (single channel), it used for monitoring and safe-guarding accessways or for counting vehicles at entry and exit of community and parking lot.

Loop detector is composed of two parts: Ground induction coil and processor. The processor is used to check

the vehicles passing by the ground induction coil, collecting induction signals and export corresponding pulse

 signals. The quantity of the passing vehicles may be judged by different output ports of thepulse signals through

 setting up different induction sensitivity and working frequency for preventing against mutual interference.

Feature:

Relay output

High temperature stability

Adapt to various bad environment

Adjustable speed of detection and frequent of initialization

With function of auto compensation when environment changed

Application:

Traffic light

Highway toll system

Parking lots toll system

Vehicle monitor and count

Detector position and installation:

Install the detector in a weatherproof housing.
The detector should be as close to the sensing loop as possible.
The detector should always be installed away from strong magnetic fields.
Avoid running high voltage wires near the loop detectors.
Do not install the detector on vibrating objects.

When the control box is installed within 10 metres of the loop, normal wires can be used to
connect the control box to the loop. More than 10 metres requires the use of a 2 core shielded
cable. Do not exceed 30 metres distance between control box and loop.

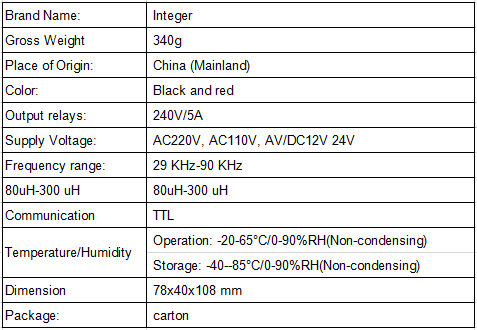

Specifications:
