Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Color: | Black |
|---|---|---|---|
| Frequency Range:: | 20 KHz To 170 KHz | Dimension: | 78x40x108 Mm |
| Gross Weight: | 340g | Connection: | 11-pin Socket |
| Sensitivity: | 4 Grade | Power Supply: | AC 220/110v, DC 24/12v |

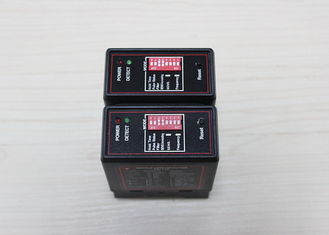

4 Grade Sensitivity Inductive Loop Vehicle Detectors For The Control Of Car Park Boom Gates

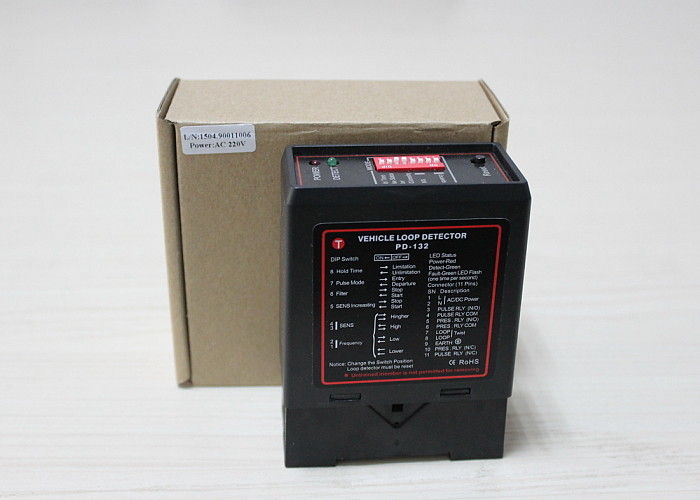

PD-132 is the hotest vehicle loop detector in our company.Good quanlity, stable working.
Loop detector is composed of two parts: Ground induction coil and processor. The processor is used to
check the vehicles passing by the ground induction coil, collecting induction signals and export corresponding
pulse signals. The quantity of the passing vehicles may be judged by different output ports of thepulse signals
through setting up different induction sensitivity and working frequency for preventing against mutual interference.
Feature:
With two relay output
Small size take up little space
With adjustable mulltievel sensitivity
Enviorment drifting compensate automatically
High temperature stability, used in kinds of environment
User can choose working frequency according to real need
Parameters:
Power: 2.5w
Response time: 100ms
Frequency range: 20-2000Hz
Sensitivity: 4 levels adjustable
Storage condition: -40c ~85c
Working condition: 0c~50c
The relative humidity < 90%
Dimension: 78x40x108 mm
Power supply: AC 110V/220V DC 12V/24V
