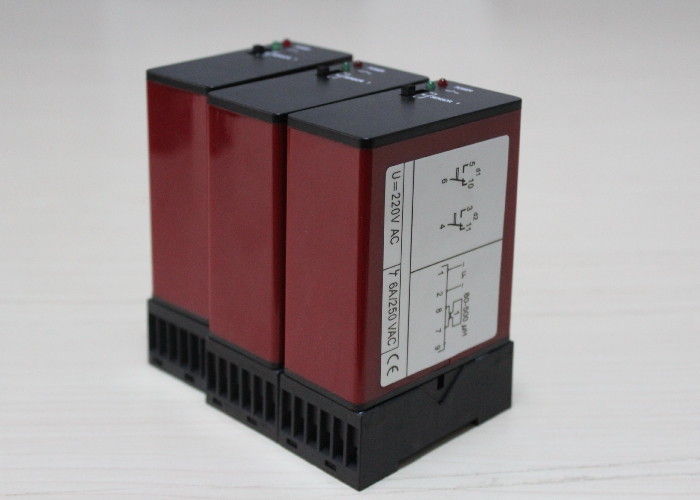

Stable Inductive Single Loop Vehicle Detector For Parking Barrier Gate

: Large Image : Stable Inductive Single Loop Vehicle Detector For Parking Barrier Gate

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	ISO 9001:2008,CE,Rohs
Model Number:	IVD-110

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	USD0~30 per pcs

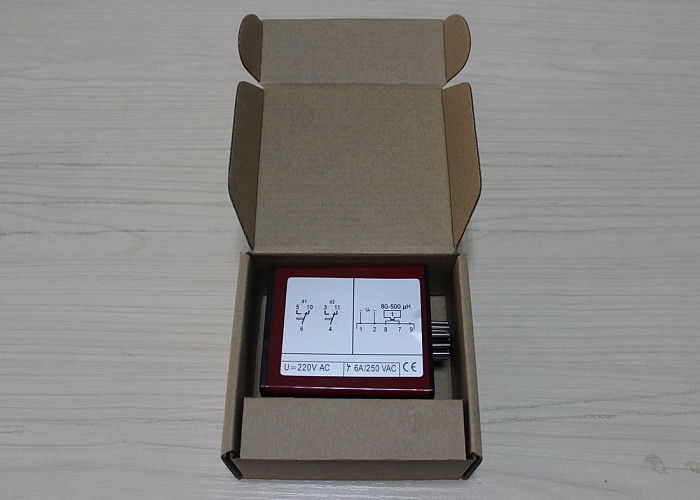

Packaging Details:	78x40x108 mm (L x W x H)
Delivery Time:	2~3 working days
Payment Terms:	T/T
Supply Ability:	10000pcs per month

Detailed Product Description

Material:	ABS	Color:	Red
Reaction Time:	100ms	Dimension:	78x40x108 Mm
Gross Weight:	340g	Connection:	11 Pin Socket
Sensitivity:	3 Grade	Channel:	Single

Stable Inductive Single Loop Vehicle Detector For Parking Barrier Gate

Introduction:

IVD-110 loop detector is composed of two parts: Ground induction coil and processor. The processor is used to check the vehicles passing by the ground induction coil, collecting induction signals and export corresponding pulse signals. The quantity of the passing vehicles may be judged by different output ports of the pulse signals through setting up different induction sensitivity and working frequency for preventing against mutual interference.

Parameters:

Power supply 220V
Power 2.5w
Frequency range 20-2000Hz
Sensitivity 8 levels adjustable
Response time 100ms
Ambient compensation Auto floating compensation
Coil induction 80-300Uh(excluding connection wire)
Storage condition -40c ~85c,
The relative humidity < 90%
Outline dimension 90* 42 *80mm(including installation base)
Working condition 0c~50c,
Coil size above AWG17

Features

1. Adapt to various bad environment;

2. Lightning-proof design

3. High temperature stability

4. Adjustable speed of detection and frequent of initialization

5. Red and white optional

6. Three kinds of relay output optional

Applications

1. Traffic light

2. Vehicle monitor

3. Highway toll system

4. Parking lots toll system

Technical Parameters

Model	IVD-110
Power Supply	AC 220V±10%/50Hz-60 Hz, AC110V±10%/ 50Hz-60 Hz, DC12V±5%
Power Consumption	3W (peak)
Loop Inductance	80—500μH
Frequency	50 KHz—250 KHz
Sensitivity	Three-level adjustable
Output	relay output
Length of Lead-in Cable	maximum 5 meters, each meter should be stranded at least 20 times
Ambient Compensation	automatic drift compensation
Operating Temperature	-5°C—70°C/ 0—90%RH(No Condense)
Storage Temperature	-20°C—80°C/ 0—90%RH(No Condense)
Weight	Approx. 0.3kg
