| Material: | ABS | Color: | Red |
|---|---|---|---|
| Reaction Time: | 100ms | Dimension: | 78x40x108 Mm |
| Gross Weight: | 340g | Connection: | 11 Pin Socket |
| Channel: | Double | Sensitivity: | 3 Grade |

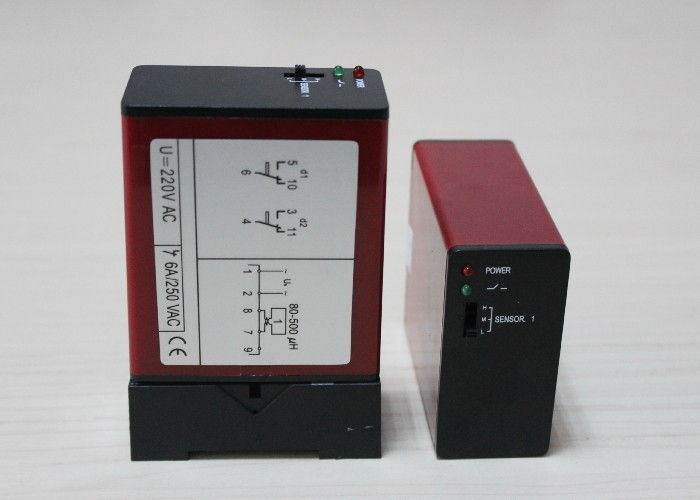

Double Vehicle Inductive Loop Traffic Detector Count And Distinguish Car ' s Direction
Description:
ILD-410 vehicle double loop sensor is for monitoring and safe guarding access ways or for counting
vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating
barriers, controlling traffic light systems or activating card dispensers in parking lots.
Application:
Traffic light
Vehicle monitor
Highway toll system
Parking lots toll system
Specifications:
1. High temperature stability, used in kinds of environment,
2. Environment drifting compensate automatically
3. Multilevel lightning protection,
4. With function of sensing loop malfunction automatically (disconnection or cutting-out),
5. Cooperate with barrier gate to realize vehicle anti-hit and automatic close function
Parameter
Supply voltage: 230V AC , 115V AC, 24V DC/AC, 12V DC/AC
( See the label on the detector)
Voltage tolerance AC: +10% / -15%
Voltage tolerance DC: ±15%
Power Consumption: 4.5VA
Output relays: 240V/5A
Operating temperature: -20°C to +65°C
Storage temperature: -40°C to +85°C
Frequency range: 20 kHz to 170 kHz
Reaction time: 10ms
Signal holding time: Unlimited / limited when loop is permanently covered 10 minutes
Sensitivity: Adjustable in 4 increments
Loop inductance: Total loop plus connection wiring:50μH to 1000μH.
Ideal is 100μH to 300μH
Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter
Size: 78x40x108 mm (L x W x H)
