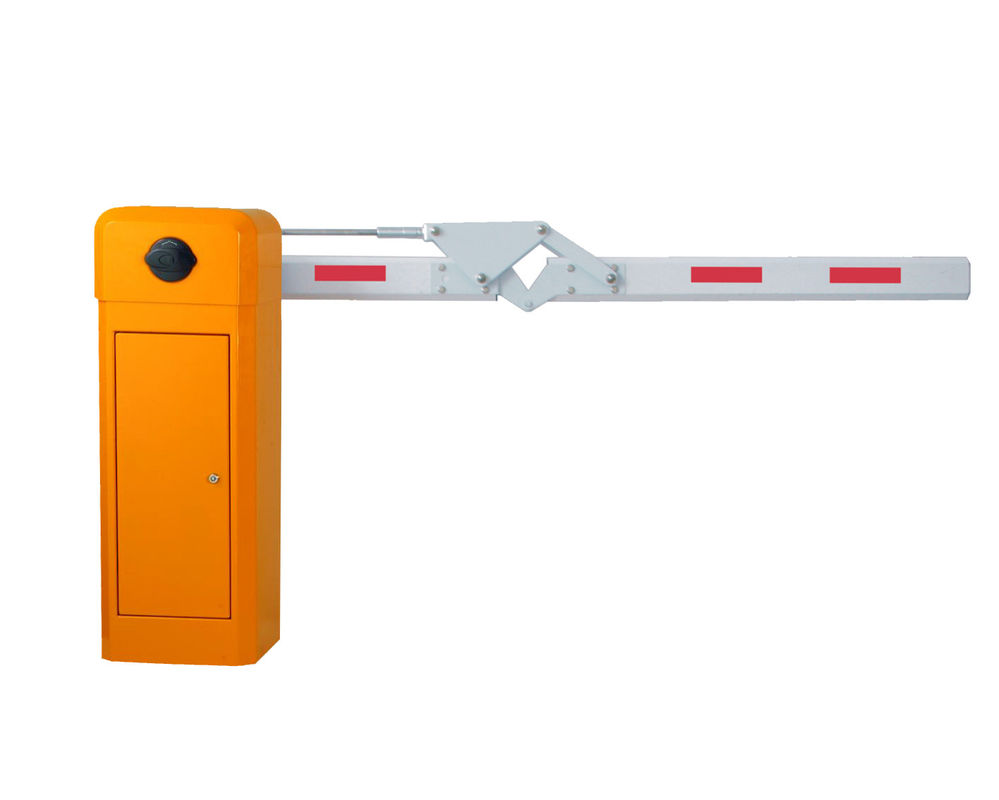

90 Degree Folding Aluminum Security Barrier Gate For Underground Parking Lot

: Large Image : 90 Degree Folding Aluminum Security Barrier Gate For Underground Parking Lot

Detailed Product Description

90 Degree Folding Aluminum Security Barrier Gate For Underground Parking Lot

Feature

Special balancing and driving mechanism make the barrier boom runing up and down smoothly. non-constant speed operation which effectively eliminates barrier boom suddenly stopping and running while it is up/down.
Manually operation open and close from the boon when power failure.
Machine core with compression spring

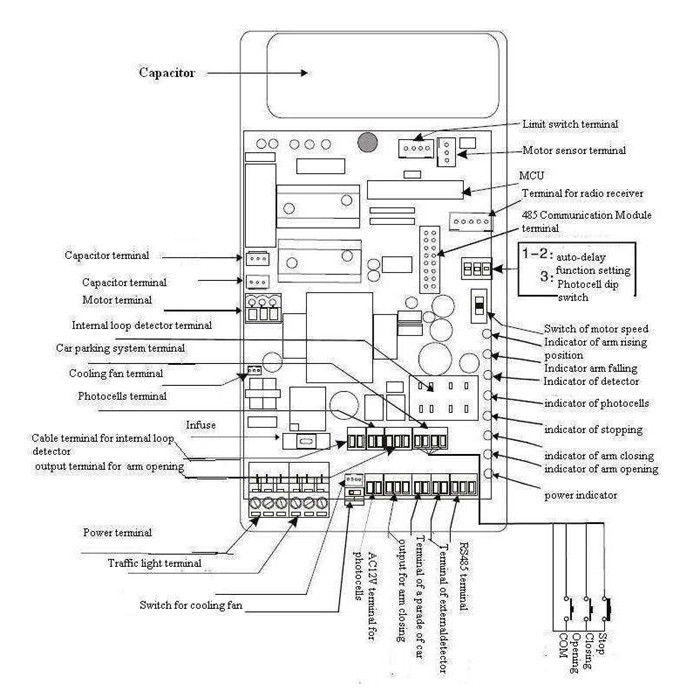

Control system adopts intelligent microprocessor technology,user-friendly,good stability.
Aluminum alloy motor, precision and good at thermal radiating
Intelligent overheating protection system, solving the problem of heat-protection
Double safety limit switches (photoelectric limit switch/mechanical limit switch)
Auto-closing
Special balancing structure design makes the barrier boom has the feature of slow-staring, fast-running, slow stopping
Special low-speed motor with aluminum casing, one-piece gear box design,The overall apperance is nice and neat,fast dissipation and over-current pretection.
The boom length can be customized.

Technical Parameters

1	Power	220V±10%, 110V±10%, 50/60HZ
2	Running Time	1.5s, 3s, 6s
3	Motor	80W
4	Operating Temperature	-40°C-60°C
5	Relative Humidity	≤95%, No condensation
6	Communication Distance	≥30m
7	Boom length	Max 6 meters
8	Cabinet Color	orange, customized color available
9	Communication Connection	RS485 Communication
10	Boom Type	straight, articulated, fence arm
11	related accessories	infrared sensors, loop detectors,traffic light, UHF readers
12	Application	vehicle access control & car parking lots
13	Cabinet	Powdered painting, stainless steel is available
14	Protection level	IP54
15	Application	Parking Lots, Toll Gates, Goods Yards, Railway Crossings, Commercial Premises, Aparment Block Access
