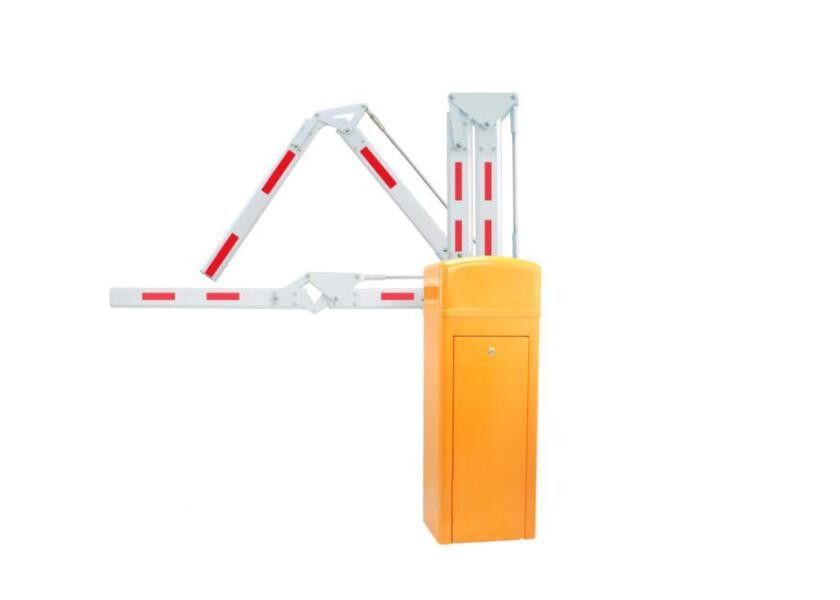

180 Degree Folding Boom Barrier Gate Driveway Car Parking Barriers

: Large Image : 180 Degree Folding Boom Barrier Gate Driveway Car Parking Barriers

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	CE, ISO, SGS
Model Number:	IBG-108-23

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	Carton(1 unit): 1020375467mm
Delivery Time:	5~15
Payment Terms:	T/T
Supply Ability:	3000units per month

Detailed Product Description

Model:	IBG-108-23	Color:	Optional
Weight:	60kg	Power Frequency:	50/60Hz
Steel Thickness:	2.5mm	Voltage:	AC 220v, 110v
Material:	Cold-rolled Steel Plate	Dimension:	1020375467mm

180 Degree Folding Boom Barrier Gate Driveway Car Parking Barriers

IBG-108-23 used to control vehicles at customs, military bases, important government, departments, airports, jails, nuclear power stations, docks, logistic centers, gardens, public parking place etc. Our products has a solid and endurable structure

Competitive Advantage:

1. Special balance device to keep the lever opening vertically and closing horizontally.

2. Power coating with customerized color
3. Able to work with straight/articulated/ fence lever
4. Equiped with high- sensibility magnet sensing limit control system
5. Work with infrared photocells or vehicle detector , preventing vehicle from damaging
6. Use simple driving actuating mechanism to reduce mechanical failer and maintenance free.
7. Convenient to control by remove control, manual switch, also open by handle when power off
8. The lever is made of high strength aluminum alloy covered with shining film, good performance of
prompting
9. Adopt thermal protection functions to turn off the motor automatically when temperature is higher
than 135 degree

INTEGER can also provide the following products:

IC/RF ID/magnetic cards and card reader, automatic card dispenser, loop detector, card collector,

tickets transport machine, micro printer, barrier gate, parking guidance system.

Technical data:

IBG-108-23
Arm Type	Folding Arm
Arm material	aluminum alloy
Arm length	≤ 6.0m
Rail up or down time	1.8s-6s optional
Motor power	AC220/50Hz
Frequency	50~60Hz
Protection class	IP65
Operating temperature	-45 to 80
Operating humidity	≤ 90% non-condensing
Dimensions	345x295x1000
Material	2.5mm cold-rolled steel plate with waterproof and rustproof coating
Communication Interface	Standard RS485
Communication Range	800-1200m
Functions	remote control
	Anti-bumping function to protect cars and pedestrain
	Solid and endurable structure, strong bearing capacity
	Manual operating mode is provided
	In case of electric failure or trouble, it can manually operate the movable barrier to return to the horizontal position
