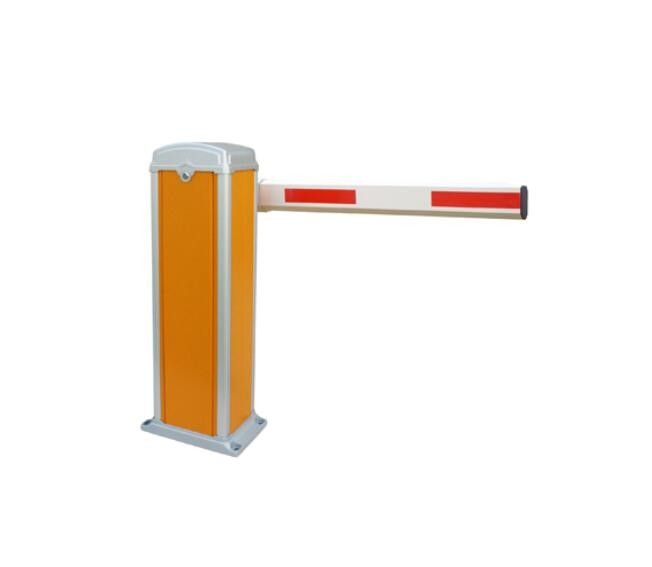

Intelligent Vehicle Control Car Park Barrier Systems Used Entry And Exit Tolling Station

Intelligent Vehicle Control Car Park Barrier Systems Used Entry And Exit Tolling Station

IBG-107 is stable and has long service life performance,running more than three million times. It provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle for parking lot, as well as hotel, exhibition center, office building ,hospitals,airports, shopping mall and highway toll gate.

Its housing is made of galvanized steel with 2mm thickness, and painted, so that the barrier can work

with parkingsystem very well, and can be used in door and outdoor.

Technical  Data

1. Working temperature(motor): -35℃- + 60℃
2. Working temperature(control panel): -35℃- + 60℃
3. Voltage: 220V±10% or 110V ±10%, 50/60Hz
4. Rated Power and capacitor: 80W, 9+9uF / 450W
5. Humidity: ≤90% RH
6. Distance of remote control: 30M≤L≤100M in the open place

Features:

1. Color available (yellow, blue, red)

2. Applications: control and management of parking lots, toll gates, goods yards, railway crossings,

    highway toll station, commercial premises, and apartment block access,

3. Manual operation in case of power failure.

4. Built-in control panel, available to IC card reader.

5. heat-protection with motor cooling fan

6. Support the Infrared Photocell for anti-bumping function (optional)

7. Support the external and internal Vehicle Loop Detector (optional)

8. water proof, dust proof, anti rust proof coating, it does not fade in 3 to 5 years

9. High reliability and low maintenance

10. Quick speed and silent operation

11. Straight arm boom gate can be made based on the width design of road surface. It is clear cut

      and highly visible and is ideal for freeway junctions.

12. The base of the anti-crash arm is made of soft rubber material which has a special function in

      avoiding damage to vehicles and pedestrians when the gate is not functioning properly due to

      human operation error or mechanical malfunctioning.

13. In case of electric failure or trouble, it can manually operate the movable barrier to return to the

      position.
