5 Ton Anti Crush Parking Space Car Space Lock Water Proof Remote Control

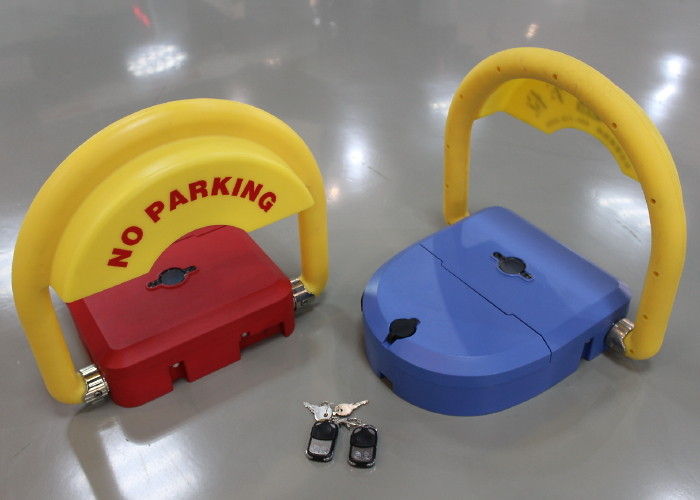

Large Image : 5 Ton Anti Crush Parking Space Car Space Lock Water Proof Remote Control

Product Details:

Place of Origin:	CHINA
Brand Name:	INTEGER
Certification:	CE
Model Number:	IPL-100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	550120100mm
Delivery Time:	3~7 working days
Payment Terms:	T/T
Supply Ability:	3000units per month

Detailed Product Description

5 Ton Anti Crush Parking Space Car Space Lock Water Proof Remote Control

Application

1 , When there is no car in the parking stall, the parking lock will rise up to its highest position.
2 , When there is a car in the parking stall, the parking lock will fill down to its lowest position.
3,If remote controller is needed, firstly you need to cut off the power and wait for three seconds, secondly you should plug in power again, when the red light is on , presstwo buttons of controller at the same time. At this moment,both red light and green light will be on, after the red is off,you can the remote controller.
4,If you want to control the parking lock in the car, you need to put it in the front of the windscreen, and press the button for 1 or 2 seconds.

Functions & Features:

1. Energy-saving; the battery perform very good and the power saved inside will last half a year.

2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.

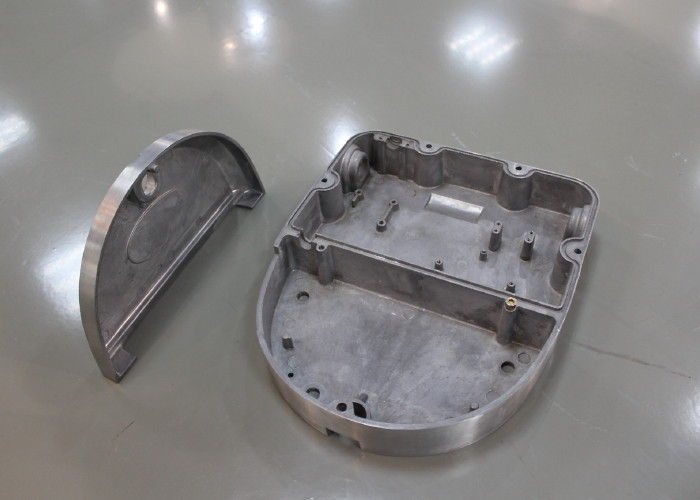

3. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.

4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.

5. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.

6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity and lesser friction.

7. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without key.

8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.

Specification

Key Parts	Material
Shell:	5～10mm A356 aluminum alloy
Baffle Arm:	PA66 grade Nylon mix steel fiber
Controller Chipset:	America Microchip
LED Chipset:	Taiwan Epistar
Seal Ring:	Germany UKS
Power:	Champion
Screw:	12.9 grade alloy steel
Motor:	Japan

Voltage	DC12V	Battery	DC12, 7Ah
Dimension	357×370×82.5mm	Current	0.4A
Running Time	4~6s	Extended Height	340mm
Remote Distance	>15M	Working Temperature	-35°C~+55°C
Weight Born	5t	IP Class	IP68
