| Standard Voltage: | DC12V | Battery Voltage: | DC12V 7Ah |
|---|---|---|---|
| Dimension: | 357×370×82.5mm | Operational Current: | 0.4A |
| Up To Down Time: | 4～6 Seconds | Vertical Position Height: | 340mm |
| Horizontal Position Height: | 82.5mm | Remote Control Distance: | Max 15M |
| Working Temperature: | -35℃～+55℃ | Maximum Bearing Weight: | 5 Tons |
| Protection Rating: | IP68 |
Technical Specification
| Key Parts | Material |
| Shell: | 5～10mm A356 aluminum alloy |
| Baffle Arm: | PA66 grade Nylon mix steel fiber |
| Controller Chipset: | America Microchip |
| LED Chipset: | Taiwan Epistar |
| Seal Ring: | Germany UKS |
| Power: | Champion |
| Screw: | 12.9 grade alloy steel |
| Motor: | Japan |
Product Features
1,Energy-saving:The battery is a best product in China and the power in it will last for half a year.
2,Safe:The power connection is anti-disconnection design in case that the user misplaces the battery causing short circuit ,battery installation is easy.
3,Durable:The cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons, the cabinet is coated with varnish, beingwater-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon,and it will not deform.
4, Hermetic: The cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof.
5,Intelligent self repositioning:The external force could not change the sway arm position when it is vertical, when the sway arm is forced to a horizontal position, it will reposition vertically. unless the user uses remote control to put it horizontally.
6, Noise-free: Bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity and lesser friction.
7, Burglarproof: The mounting bolts are placed inside of the cabinet and without key
8, Installing friendly: Four prepared holes at the bottom of the cabinet makes it easy to install.
Product Installation
1, Installation Spot: It is suggested to install the parking lock at the very center of parking seat.
2,Installation Ground: To install the parking lock in a dry and smooth concrete ground, and no radio signal interference around.

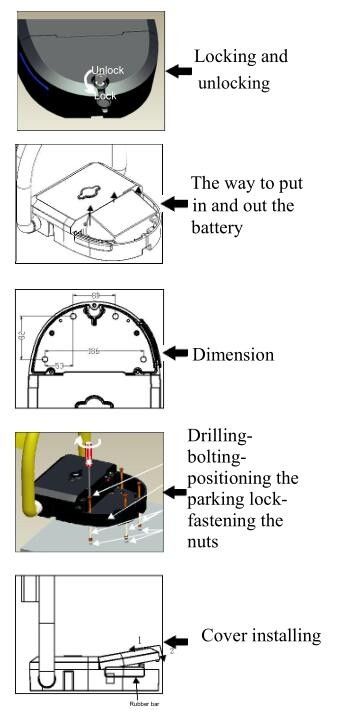

3,Installation Steps: Drill four corresponding holes 10× 5mm in the ground and use four expansion bolts
prepared in the package to fasten it. (As the following drawing shows)
