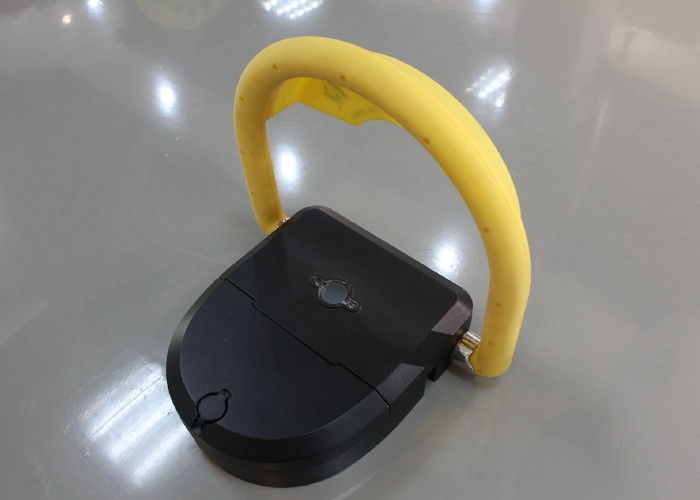

Intelligent Parking Space Locking Device For Reserved Spaces

: Large Image : Intelligent Parking Space Locking Device For Reserved Spaces

Product Details:

Place of Origin:	CHINA
Brand Name:	INTEGER
Certification:	CE
Model Number:	IPL-100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	550120100mm
Delivery Time:	3~7 working days
Payment Terms:	T/T
Supply Ability:	3000units per month

Detailed Product Description

Standard Voltage:	DC12V	Battery Voltage:	DC12V 7Ah
Dimension:	357×370×82.5mm	Operational Current:	0.4A
Up To Down Time:	4～6 Seconds	Vertical Position Height:	340mm
Horizontal Position Height:	82.5mm	Remote Control Distance:	Max 15M
Working Temperature:	-35℃～+55℃	Maximum Bearing Weight:	5 Tons
Protection Rating:	IP68

Intelligent Parking Space Locking Device For Reserved Spaces

Product Introduction

IPL-100 Parking lock is the newly-developed product by Integer Company. The cabinet of the parking lock is coated with high-class varnish with features of glossiness and fast color. The product has attributes like beautiful and novel structure designing, user-friendly, diversified functions, safe and durable operation. It is well applied for carparking management in areas like high-end residences,shopping malls, hotels, airports and other commercial places.

Technical Specification

Model:IPL-100
Standard Voltage:DC12V
Battery Voltage:DC12V 7Ah
Dimension:357×370×82.5mm
Operational Current:0.4A
Up to Down Time:4～6 Seconds
Vertical Position Height:340mm
Horizontal Position Height:82.5mm
Remote Control Distance:Max 15M
Working Temperature:-35℃～+55℃
Maximum Bearing Weight:5 tons
Protection Rating:IP68

Product Features

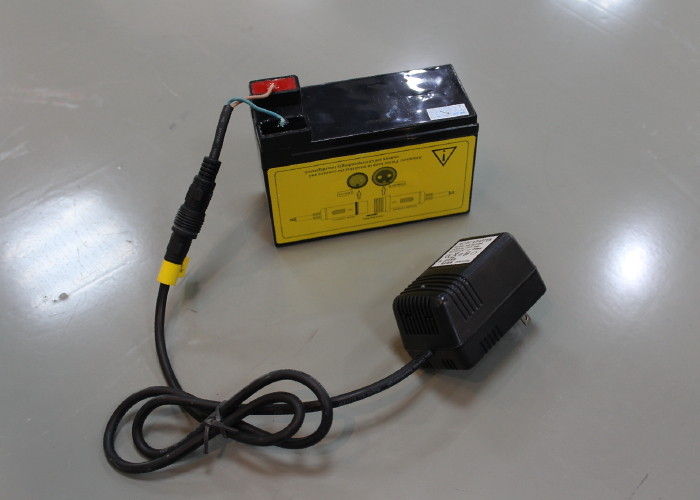

1,Energy-saving:The battery is a best product in China and the power in it will last for half a year.
2,Safe:The power connection is anti-disconnection design in case that the user misplaces the battery causing short circuit ,battery installation is easy.
3,Durable:The cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons, the cabinet is coated with varnish, beingwater-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon,and it will not deform.
4, Hermetic: The cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof.
5,Intelligent self repositioning:The external force could not change the sway arm position when it is vertical, when the sway arm is forced to a horizontal position, it will reposition vertically. unless the user uses remote control to put it horizontally.
6, Noise-free: Bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity and lesser friction.
7, Burglarproof: The mounting bolts are placed inside of the cabinet and without key
8, Installing friendly: Four prepared holes at the bottom of the cabinet makes it easy to install.

Intelligent Parking Space Locking Device For Reserved Spaces
