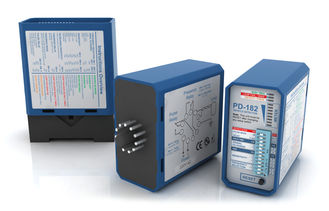

Black ABS Inductive Loop Vehicle Detector With All Parameter Setting By Software

: Large Image : Black ABS Inductive Loop Vehicle Detector With All Parameter Setting By Software

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	ISO 9001:2008,CE,Rohs
Model Number:	PD-182

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	USD50 per pcs
Packaging Details:	78x40x108 mm (L x W x H)
Delivery Time:	2~3 working days
Payment Terms:	T/T
Supply Ability:	10000pcs per month

Detailed Product Description

Material:	ABS	Color:	Black
Frequency Range::	50 KHz To 200 KHz	Dimension:	78x40x108 Mm
Gross Weight:	340g	Connection:	11-pin Socket

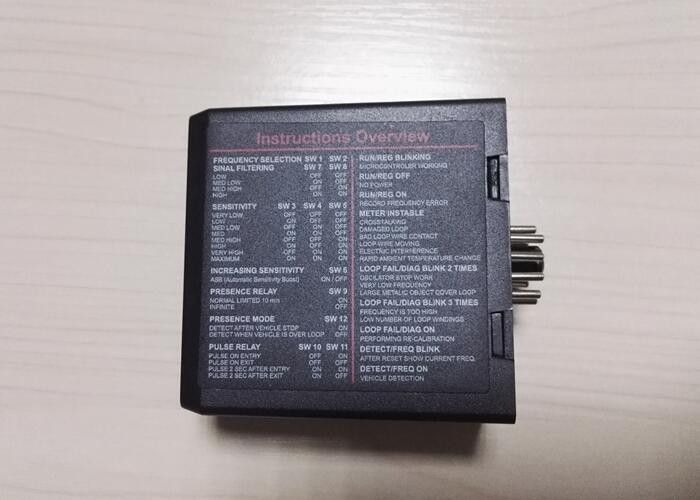

Sensitivity:	8 Grade	Adjust Parameter:	12pin DIP Switch/ Software
Label Color:	White Or Black

Black ABS Inductive Loop Vehicle Detector With All Parameter Setting By Software

PD182 Single Channel Vehicle Loop Detector allows for detection of metalic objects entering

into the field formed around the detection loop. We have designed PD-182 with the following

objectives in mind:

Application:

Traffic light

Vehicle monitor

Highway toll system

Parking lots toll system

Feature:

1. Fully compatible with most popular 11 pin loop detector of market.
2. Diagnostic capabilities using LED, without external accessories.
3. Frequency display using LED to show real frequency working between 50Khz to 200Khz
4. Level Meter using LED to show in real time any detection from loop field.
5. More options like four frequency, eight sensitivity level, four signal filtering.
6. Loop isolation protection for lightning and transient damage.
7. Selectable permanent presence (to eliminate premature barrier / gate closure )
8. High quality components from Germany and Japan for high stability of detection
9. DETECT STOP function allows detection only when a vehicle has come to a complete stop on the loop.
10.All parameter can be adjust by software, and have more range to select such as the sensitivity and

frequency.

Technical data

Operating voltages: 12V AC/DC ±5% 24V AC/DC ±5%
110V AC ±10% 220V AC ±10%
Power consumption: <5W
Output: Relay output
Frequency range: 50kHz to 200kHz (4 grades adjustable)
Reaction time: 20 ms
Sensitivity: 8 grades adjustable
Loop inductance: Ideal 100~300µ H (include connecting wiring)
Max 50µ H~1000µ H (include connecting wiring)
Loop conn. Wiring: Max. 100m, twisted at least 20 times per meter, total resistance <10 Ohm
Operating temp.: -30 to +75degree
Storage temp.: -40 to +85 degree
Relative humidity: ≤ 95%
Connection: 11-pin socket
Shell: PC + ABS engineering plastics
Installation: 11 pins socket
Dimensions: 110× 60× 100 mm (L× W× H)
Net Weight: 400g (include socket)
